GFSJ Series Hammer Mill
GFSJ Series Hammer Mill
You're welcome to bring your materials for machine - testing and conduct on - site factory inspections. We have full confidence in the advantages of our products. Feel free to make comparisons anywhere in China.

Product Introduction

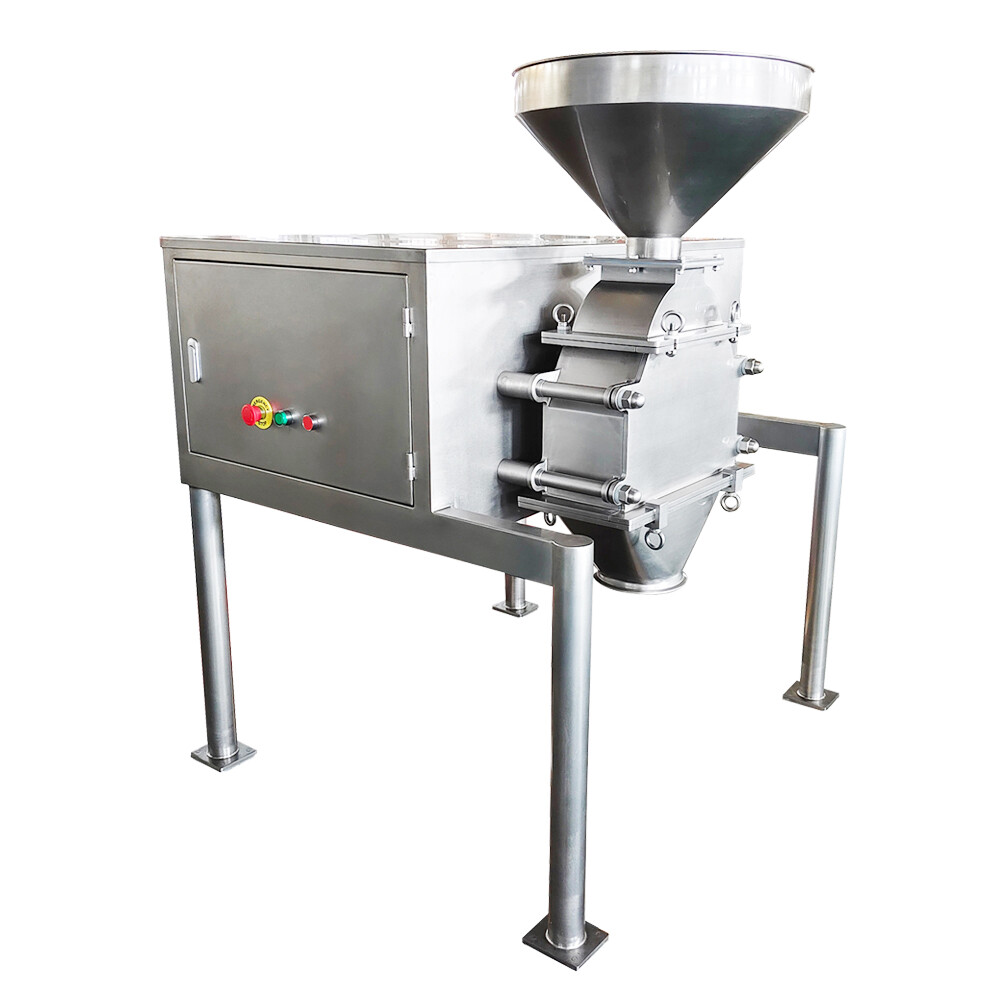

Product Description: GFSJ Series High-Efficiency Hammer Mill - Advanced Size Reduction for Diverse Industries

Our GFSJ Series High-Efficiency Hammer Mill is an improved version of the FITZMILL design, offering superior size reduction capabilities. This hammer mill is widely used in pharmaceutical, chemical, food, and other related industries.1

Working Principle:

This high-speed hammer mill utilizes adjustable blades to shear materials, achieving the desired particle size.2 The machine can be equipped with various blade shapes and sizes to accommodate different materials.3 Particle size is controlled by changing screens or adjusting the rotor speed.

Key Advantages:

  • Easy Installation: Simplified design for quick setup.
  • Stable Operation: Reliable performance for continuous production.
  • Mobile Design: Convenient mobility for flexible placement.
  • Low Noise: Quiet operation for improved working environments.
  • High Grinding Efficiency: Delivers rapid and consistent size reduction.

Key Features and Benefits:

  • Improved Design: Based on the reliable FITZMILL design, with enhanced features.
  • Adjustable Blades: Versatile blade configurations for various materials.
  • Variable Particle Size: Controlled particle size through screen changes and speed adjustments.
  • Wide Industrial Application: Suitable for pharmaceutical, chemical, and food processing.
  • Durable Construction: Built for long-lasting performance.
  • Easy Maintenance: Designed for simple cleaning and upkeep.


Technical Parameters


ModelGFSJ-8GFSJ-16GFSJ-32GFSJ-64
Capacity(kg/h)10-10050-300100-500200-1200
Feed Fineness(mm)<50<50<50<50
Discharge Fineness(mesh)12-12012-12012-12012-120
Power(kw)37.51118.5
Adjustable Speed(rpm)2350~43601000~2400~44001000~2400~44001500~2400
Weight(kg)150250320500
