Working Principle:

The universal pulverizer mainly relies on the high-speed relative motion between the movable disk and the fixed disk. Materials to be pulverized are crushed through the combined effects of impact, shearing, friction between the two disks, and collision among materials themselves. Specifically, materials enter the crushing chamber from the hopper, are thrown to the inner wall from the center by the centrifugal force generated by the high-speed rotation of the movable toothed disk, and then crushed by the impact, shearing, grinding of steel teeth between the movable and fixed toothed disks, as well as the collision of materials.

Advantages:

1. Simple structure: The pulverizer has a simple structure; its crushing chamber is easy to assemble, disassemble and clean, which greatly reduces maintenance costs and improves work efficiency.

2. All-stainless steel construction: Mainly made of 304/316L stainless steel, the inner chamber, dust removal box and other parts are fully welded without weld dead ends, meeting GMP requirements and ensuring product quality and hygiene standards.

3. Stable operation, low noise and vibration: Equipped with imported SKF bearings, its moving parts are CNC-machined with high precision, which largely reduces noise and vibration and extends equipment service life.

4. Easy operation: It is easy to operate; crushing fineness can be controlled by replacing the screen and adjusting the rotation speed, allowing operators to master the usage quickly.

5. Wide application range: Widely used for pulverizing materials in pharmaceutical, chemical, food and other industries. For different materials and crushing requirements, different cutter disk types can be configured to provide satisfactory crushing solutions.

6. Energy-efficient: Adopting impact crushing, materials enter the crushing chamber and are crushed by collision between the tooth ring and materials. The crushed materials enter the cloth bag through the screen holes with the help of airflow, leaving no residue. This design enables efficient crushing while saving energy.

7. Clean production environment: A large amount of dust is generated during crushing, but the pulverizer is generally equipped with dust collection and removal devices, which effectively control dust emission and keep the production environment clean.

8. Durable: The blades are made of specially treated stainless steel (wear-resistant alloy can also be customized), ensuring the equipment's durability and reliability.

Selection of Universal Pulverizer:

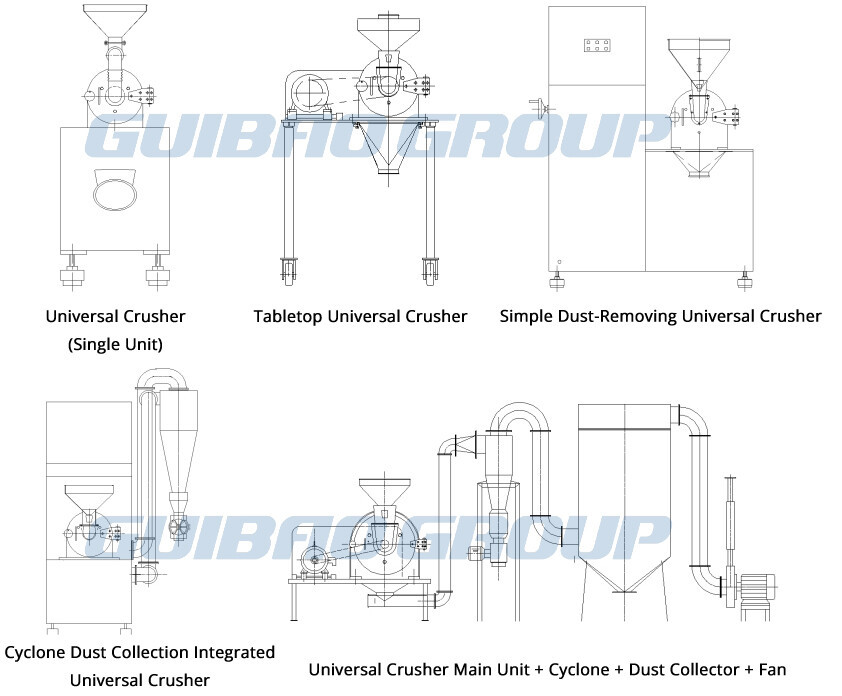

This series of pulverizers offers multiple structural types for selection, including single machine, simple dust removal type, bench type, cyclone dust removal integrated type, cyclone dust removal unit, etc., which can be flexibly chosen according to different application scenarios and needs.

Customizable Configuration Options:

1. Water-cooled structure or cooling fan unit can be added to meet the needs of crushing heat-sensitive materials or continuous mass production.

2. Equipment control: Button-type control box, PLC control box, explosion-proof control box.

3. Equipment material: 304 stainless steel, 316 stainless steel.

4. Motor requirement: Ordinary motor, explosion-proof motor.

5. Surface treatment: Matte polishing, mirror polishing.

Examples of Dust-Free Grinding Systems:

Process: Dust-Free Feeder - Vacuum Conveyor - Hammer Mill - Vibrating Screen

Process: Dust-Free Feeder - Vacuum Conveyor - Universal Grinder - Vacuum Conveyor - Weighing Buffer Hopper
