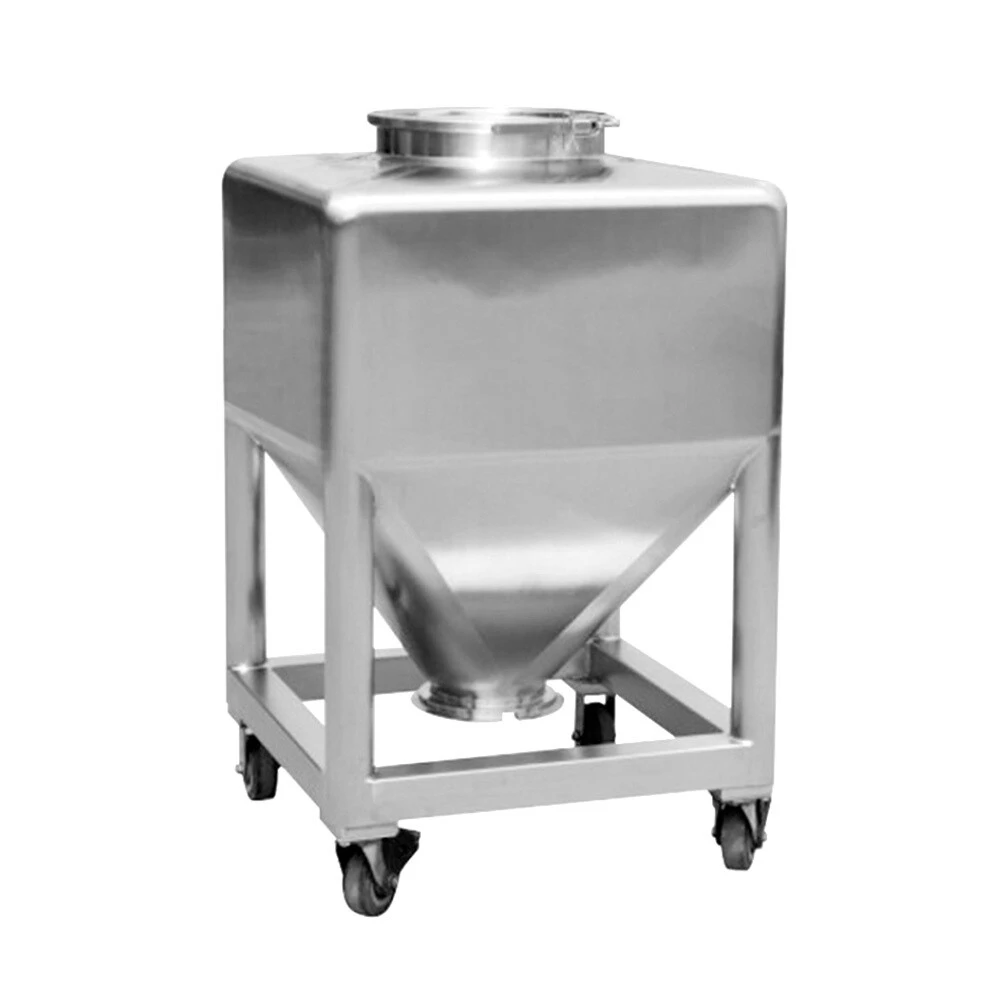

LDF Series Square Transfer Bin

You're welcome to bring your materials for machine - testing and conduct on - site factory inspections. We have full confidence in the advantages of our products. Feel free to make comparisons anywhere in China.

Product Introduction

It is used for material storage and transportation.

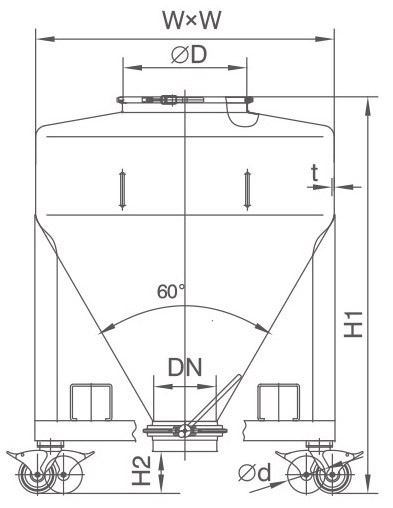

Technical Parameters

Model	H1	H2	ΦD	Φd	W	DN	Volume(L)	Wall Thickness(t)
LDF150	918	172	400	100	694	200	150	2
LDF200	1097	158	400	100	594	150	200	2.5
LDF250	1095	204	400	125	794	200	250	2.5
LDF300	1168	204	400	125	794	200	300	2.5
LDF400	1290	165	400	125	794	200	400	2.5
LDF500	1331	229	500	125	994	200	500	2.5
LDF600	1366	151	500	125	994	200	600	2.5
LDF800	1545	118	500	125	994	200	800	2.5
LDF1000	1586	168	500	150	1194	250	1000	2.5
LDF1200	1736	181	500	150	1194	250	1200	3
LDF1500	1868	99	500	150	1194	250	1500	3
LDF1800	2088	103	500	150	1194	250	1800	3
LDF2000	2238	113	500	150	1194	250	2000	3
Note: Our company can customize and produce products according to the special requirements of customers.
