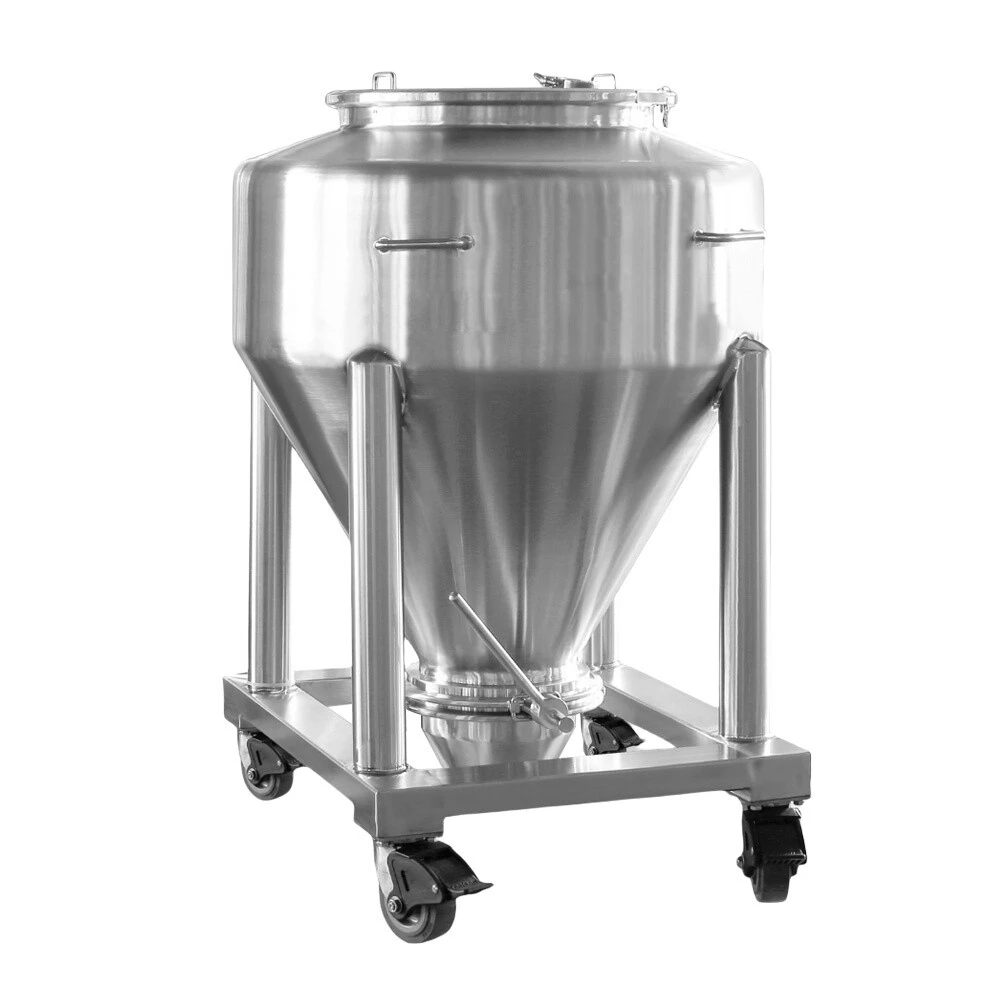

LDC Series Circular Transfer Bin

You're welcome to bring your materials for machine - testing and conduct on - site factory inspections. We have full confidence in the advantages of our products. Feel free to make comparisons anywhere in China.

Product Introduction

It is used for material storage and transportation.

Technical Parameters

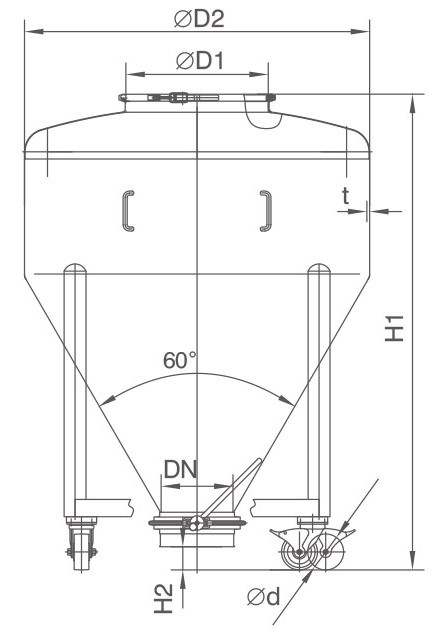

Model	H1	H2	ΦD1	ΦD2	Φd	DN	Volume(L)	Wall Thickness(t)
LDC100	900	180	400	650	100	150	100	2
LDC150	992	167	400	750	100	200	150	2
LDC200	1104	167	400	750	100	200	200	2
LDC300	1106	87	400	900	125	200	300	2.5
LDC400	1261	87	400	900	125	200	400	2.5
LDC500	1416	87	400	900	125	200	500	2.5
LDC600	1468	231	500	1200	125	250	600	2.5
LDC800	1654	231	500	1200	125	250	800	2.5
LDC1000	1654	81	500	1200	125	250	1000	2.5
Note: Our company can customize and produce products according to the special requirements of customers.
