LDPF Series Square Tablet Bin

You're welcome to bring your materials for machine - testing and conduct on - site factory inspections. We have full confidence in the advantages of our products. Feel free to make comparisons anywhere in China.

Product Introduction

It is used for material storage and transportation.

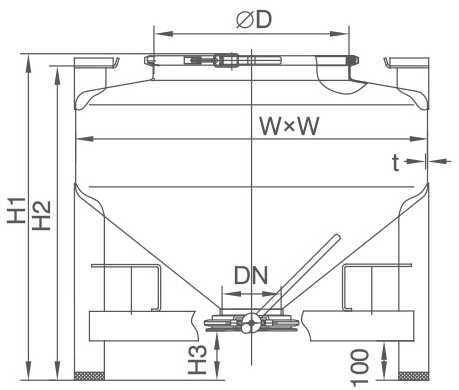

Technical Parameters

Model	H1	H2	H3	ΦD	W	DN	Volume(L)	Wall Thickness(t)
LDPF200	794	768	175	400	794	150	200	2.5
LDPF300	829	798	125	500	894	150	300	2.5
LDPF400	859	828	125	500	994	150	400	2.5
LDPF500	963	932	125	500	994	150	500	2.5
LDPF600	936	905	125	500	1194	150	600	2.5
Note: Our company can customize and produce products according to the special requirements of customers.
