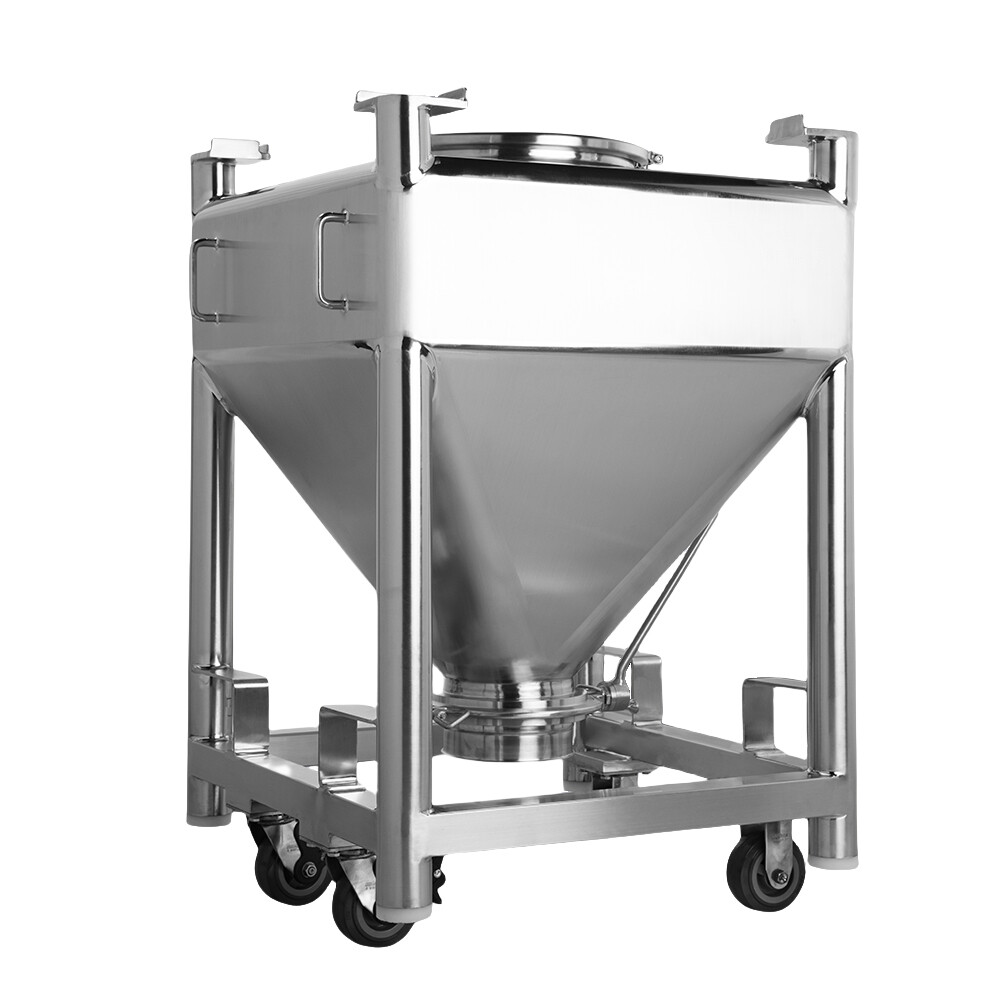

LDZ Series IBC Bin

You're welcome to bring your materials for machine - testing and conduct on - site factory inspections. We have full confidence in the advantages of our products. Feel free to make comparisons anywhere in China.

Product Introduction

It is a stainless steel bin used as a supporting part for the mixing material bin together with the HDT Series IBC Bin Blender.

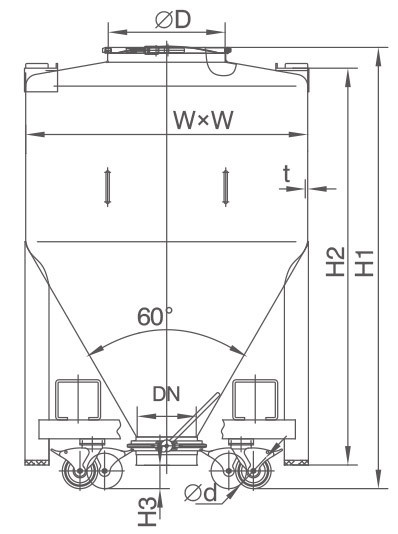

Technical Parameters

Model	H1	H2	H3	ΦD	Φd	W	DN	Volume(L)	Wall Thickness(t)	Weight(kg)
LDZ300	1118	960	251	400	125	794	200	300	2.5	145
LDZ400	1287	1130	165	400	125	794	200	400	2.5	155
LDZ600	1368	1200	151	500	125	994	200	600	2.5	185
LDZ800	1545	1375	118	500	125	994	200	800	2.5	200
LDZ1000	1586	1400	168	500	150	1194	250	1000	2.5	248
LDZ1200	1736	1550	181	500	150	1194	250	1200	3	285
LDZ1500	1863	1680	99	500	150	1194	250	1500	3	312
LDZ1800	2032	1850	125	500	150	1194	250	1800	3	328
LDZ2000	2238	2055	113	500	150	1194	250	2000	3	355
Note: Our company can customize and produce products according to the special requirements of customers.
