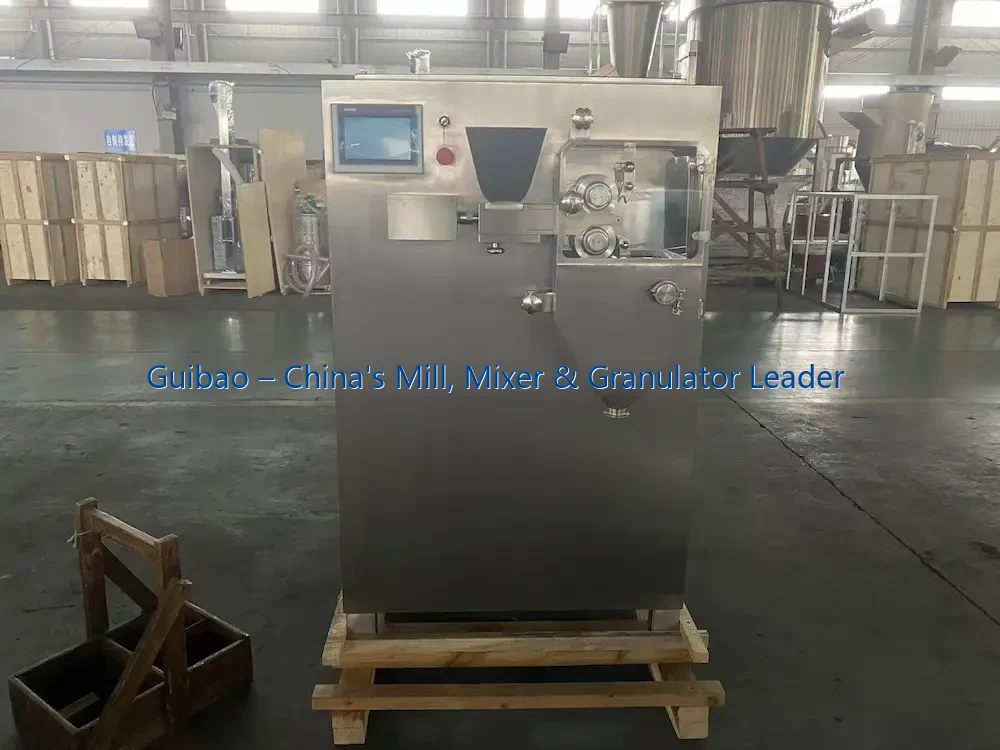

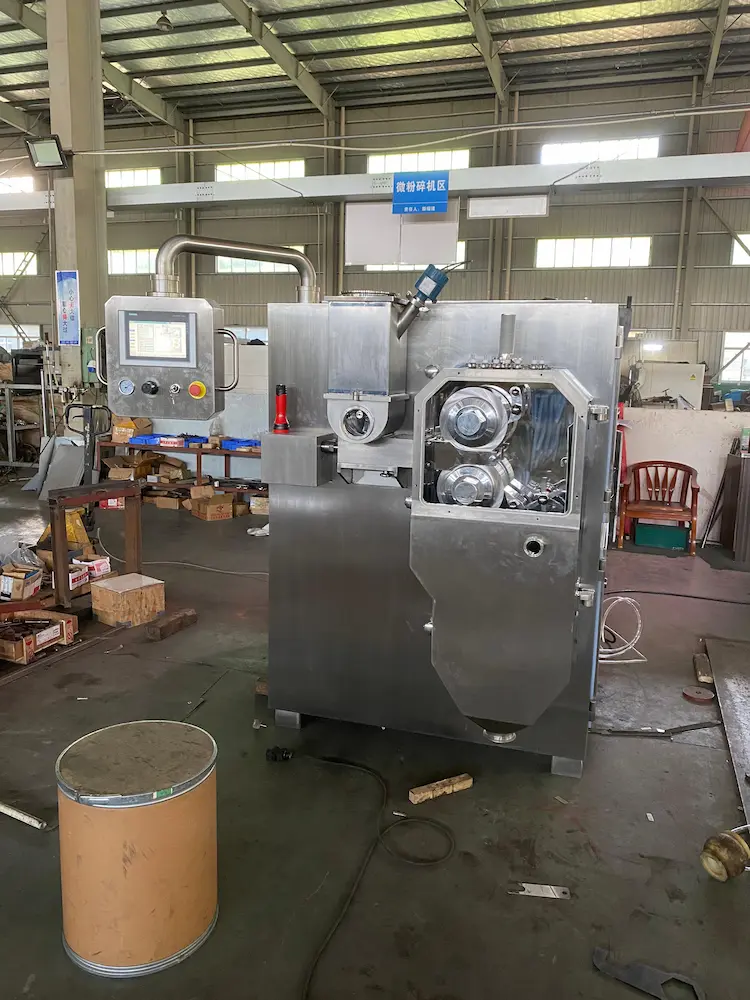

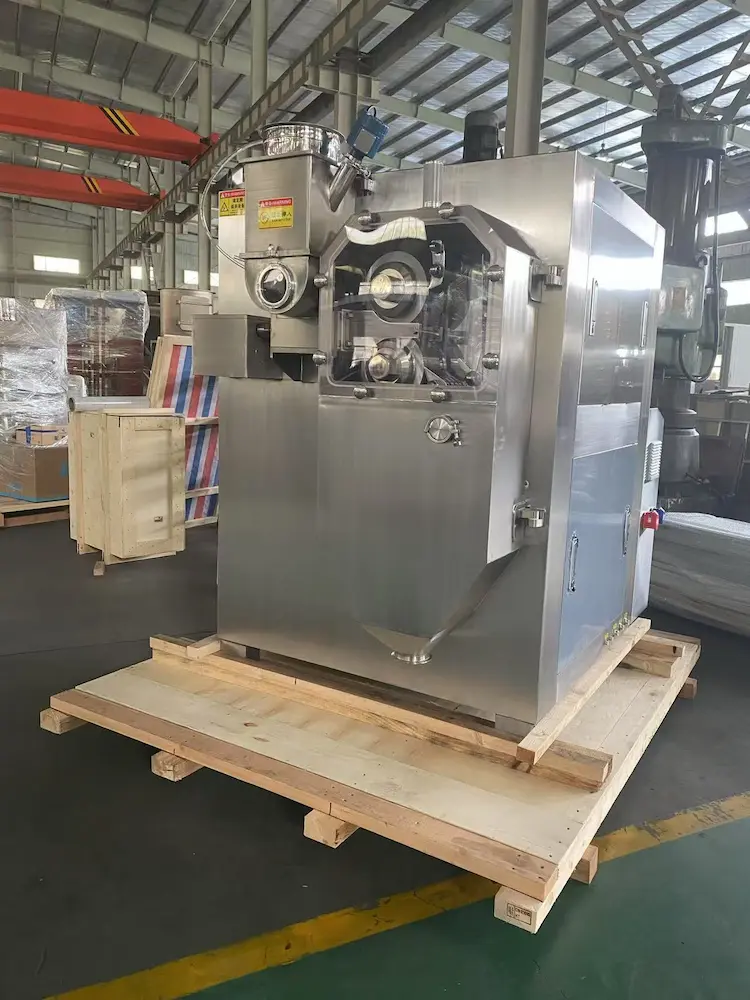

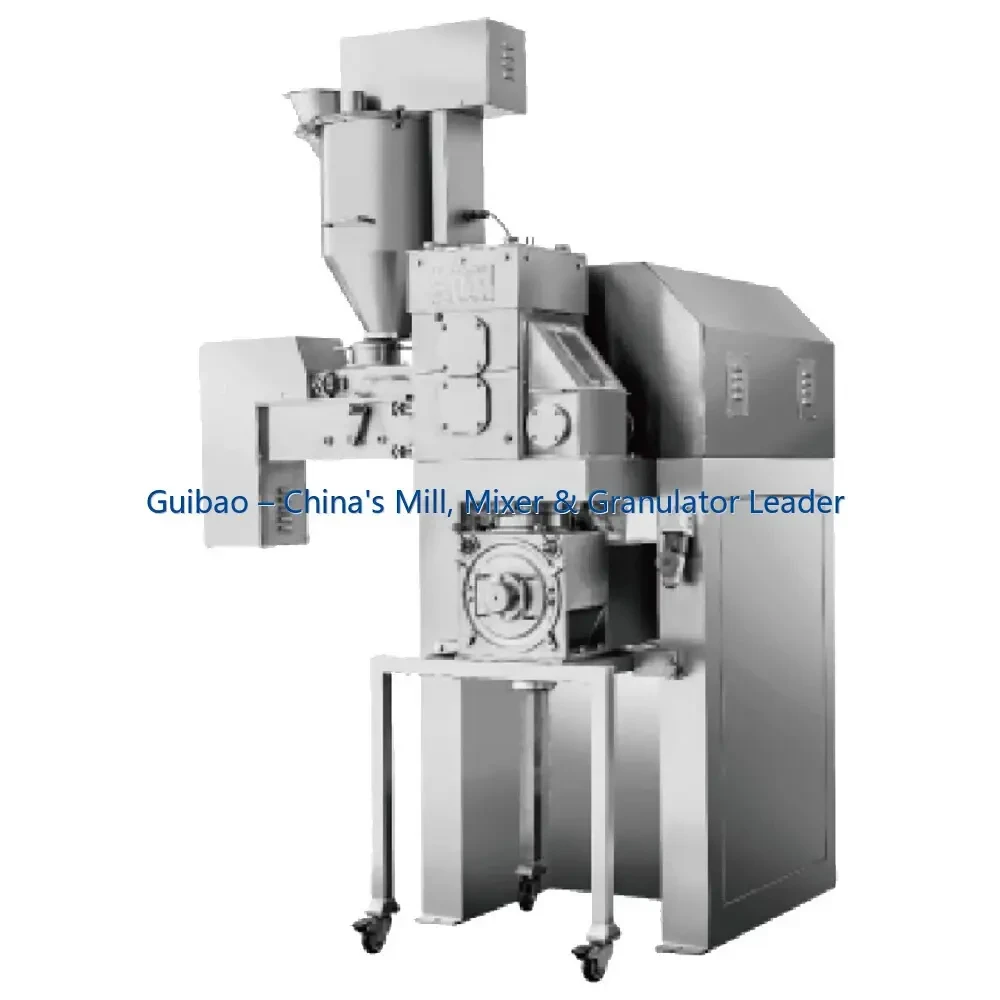

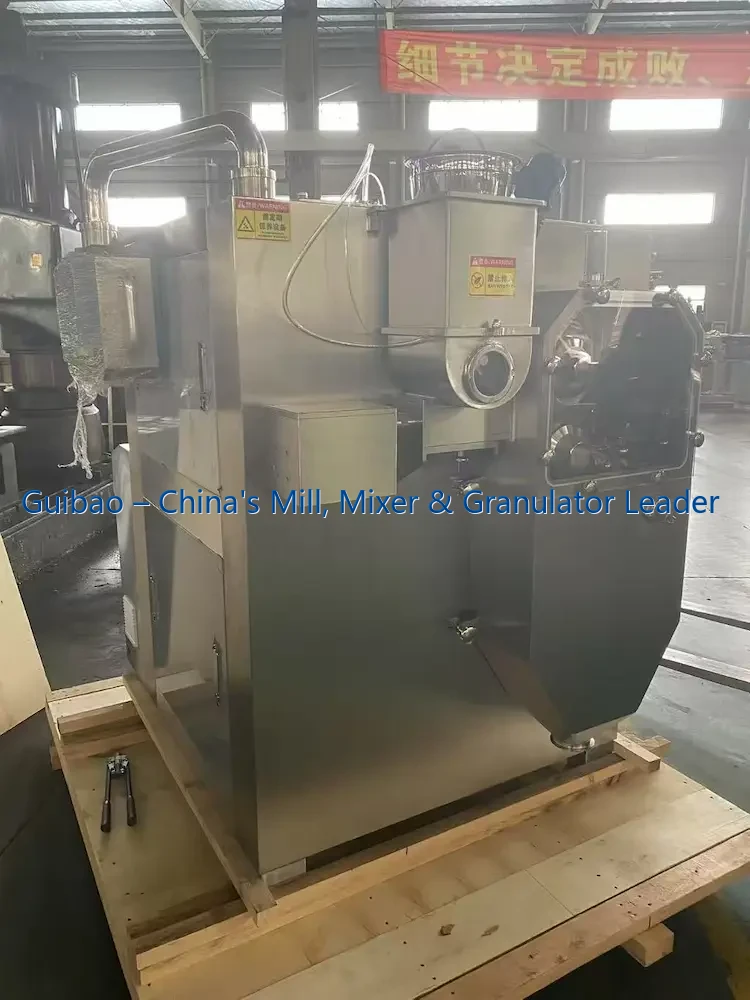

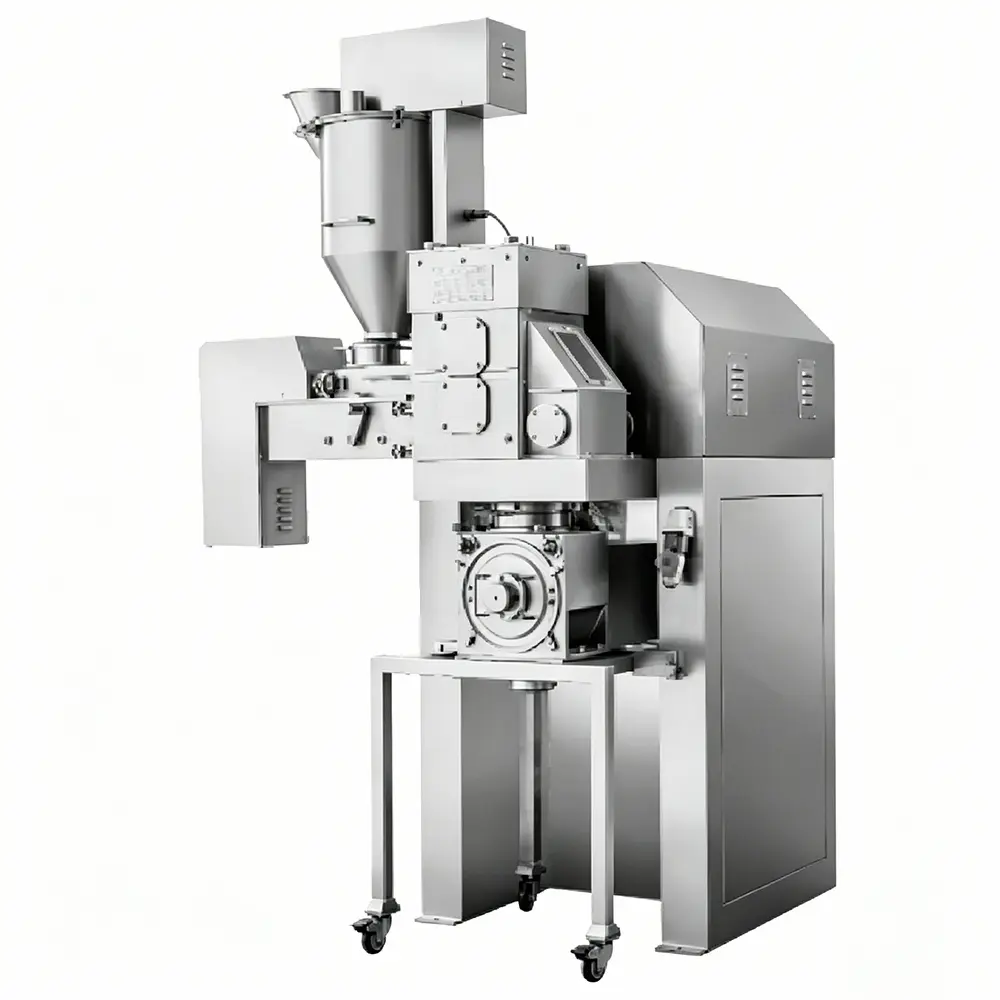

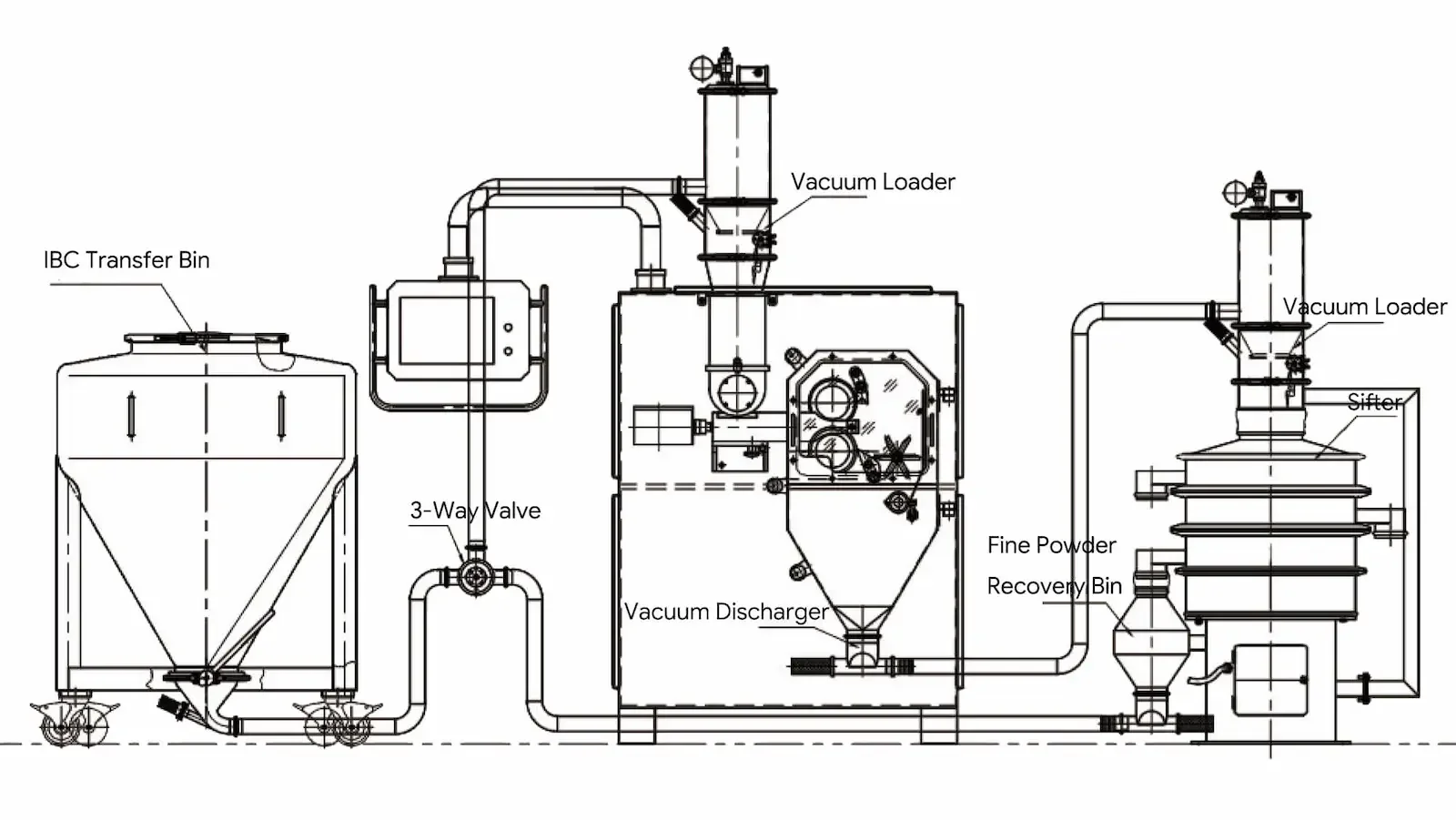

Dry Granulation System (Roller Compactor) for Pharmaceutical, Food, and Chemical Industries

1. High Equipment Output & High First-Pass Granulation Rate

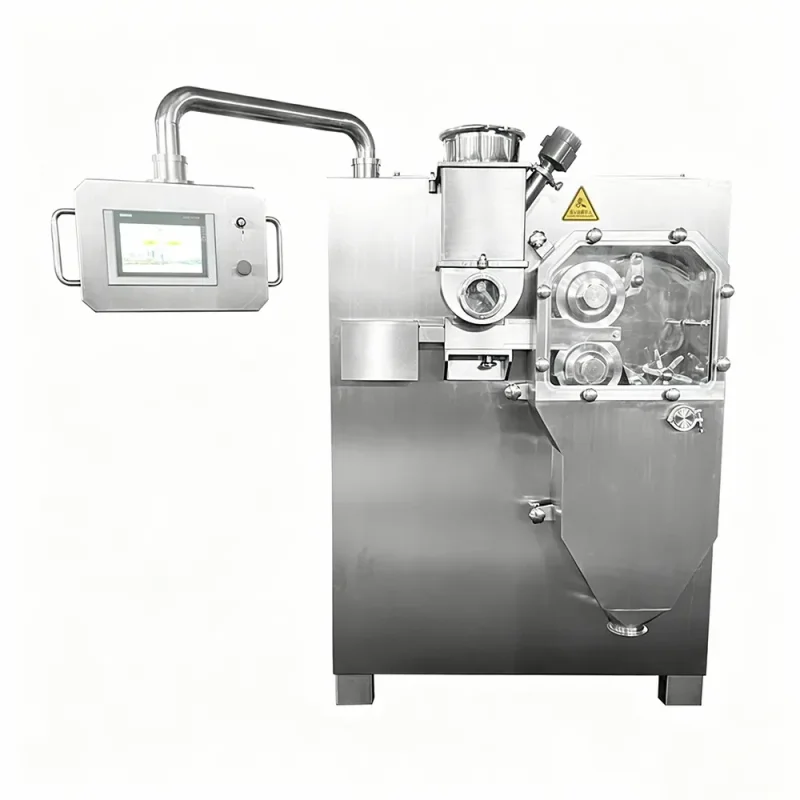

· Qualified granule output = feed volume × granulation rate. Our roller compaction granulators of the same model boast 10% higher output than competitors'. We also offer high-output models like LG240 and LG360.

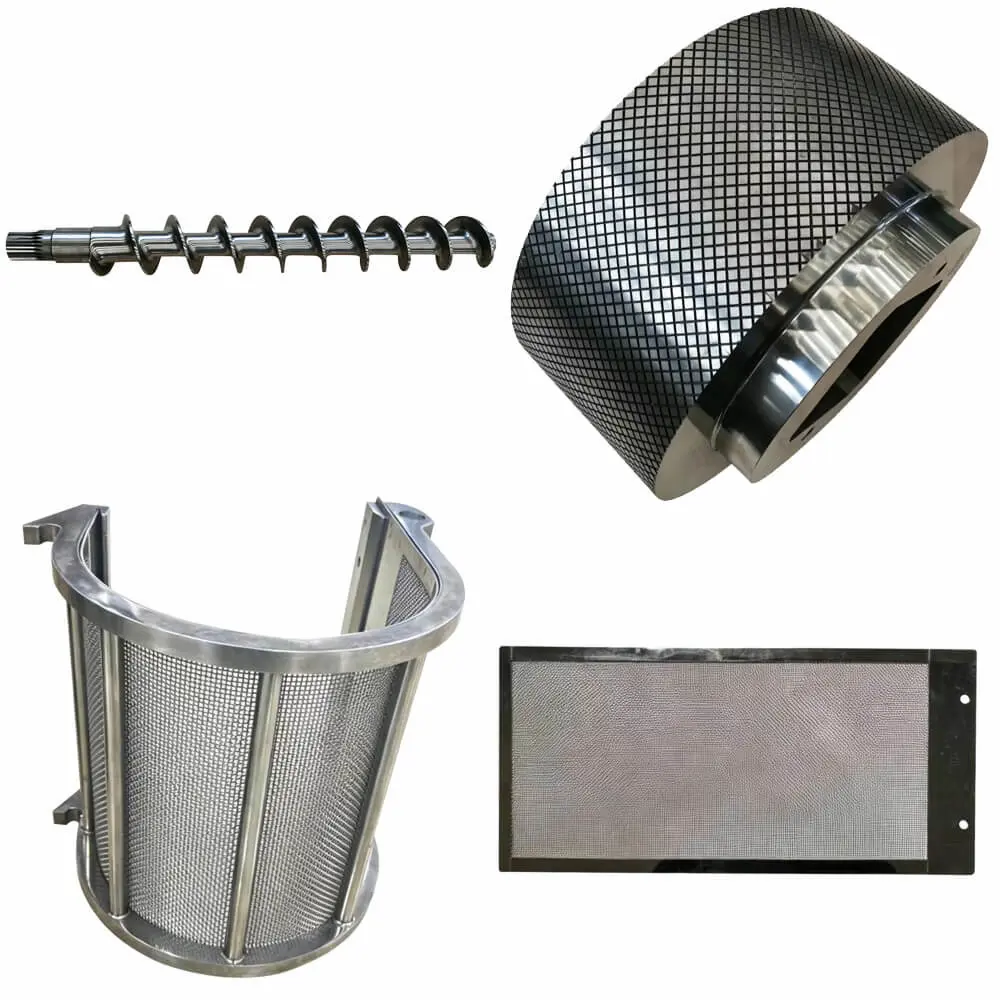

· Screens adopt welded woven mesh, extending service life and enabling easy installation. The first-pass granulation rate is 15% higher than that of punched screens: 60% for 10-40 mesh TCM formula granules and over 75% for 20-80 mesh chemical drugs.

2. Excellent Sealing Performance: Safeguarding Personnel & Drug Safety

Multiple anti-leakage designs fully protect production safety, complying with GMP and FDA requirements:

· The connection between the feed hopper and cylinder is sealed with a foam silicone rubber strip, fixed by 3 bolts with adjustable tightness—no leakage even during vacuum feeder's feeding and back-blowing.

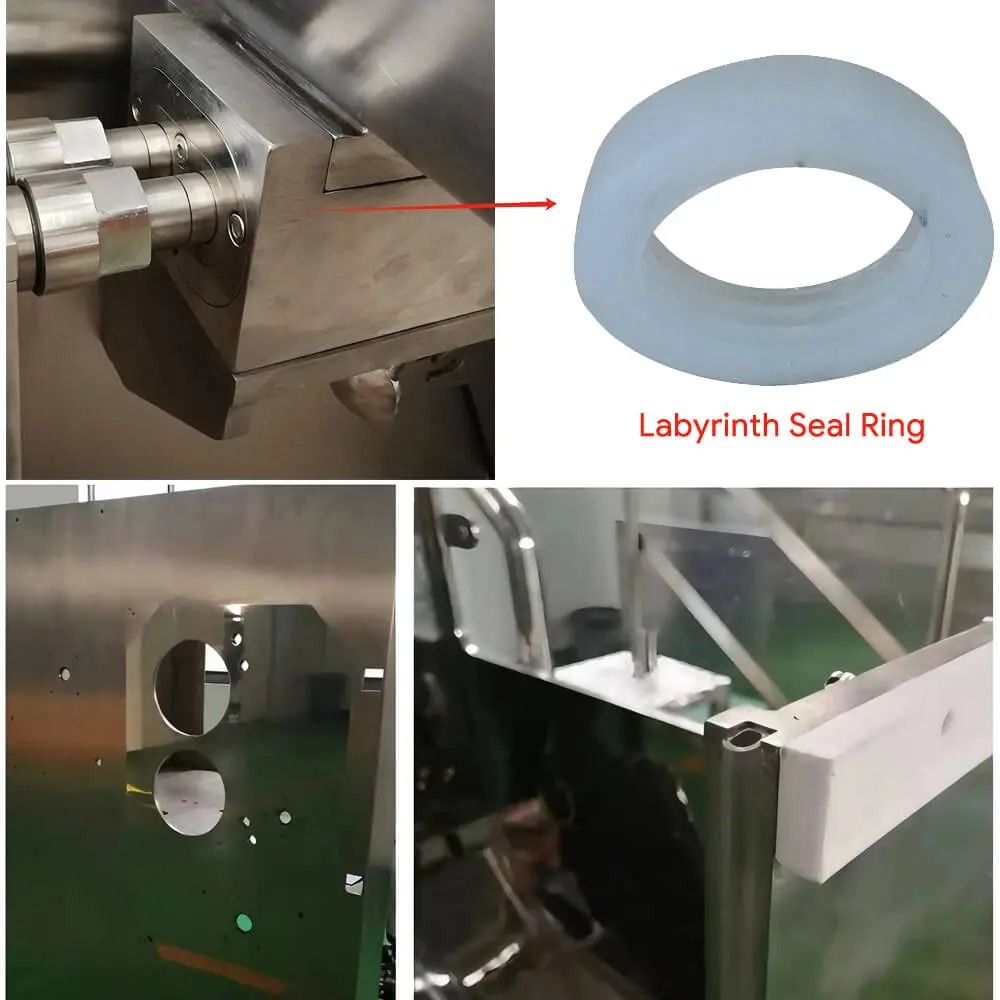

· The sealing ring at the contact of the material conveying device's end cover and screw features a special structure: it fits rotating parts tightly while maintaining flexibility, with a service life 3x longer than ordinary seals.

· The joint of the front cover door and front panel uses a silicone hollow sealing strip (embedded installation). When closed, the strip adheres closely to the ground frame front panel.

· A water-cooled chiller with a built-in negative-pressure water pump is adopted to greatly reduce pressure in the pressure wheel cavity. Meanwhile, the main shaft end for pressure wheel installation is sealed with 3 rings to eliminate water leakage risks.

· Motors for the granule-shaping and feeding systems are custom non-standard models. Rotating parts are directly mounted on the gear motor shaft (no bearings), preventing lubricating oil leakage from radial shaft seal damage.

· The pressure wheel-contacting sealing plate is made of food-grade PEEK. Its wear resistance is over 10x that of PTFE, with no replacement needed for 3 years. A non-sealing material conveying device is also equipped—mechanical control maintains a small gap between front/rear pressure plates and the pressure wheel to avoid wear, ensuring no drug impurities.

3. Simple Structure & Easy Assembly/Disassembly (Host disassembly < 5 mins, assembly < 8 mins)

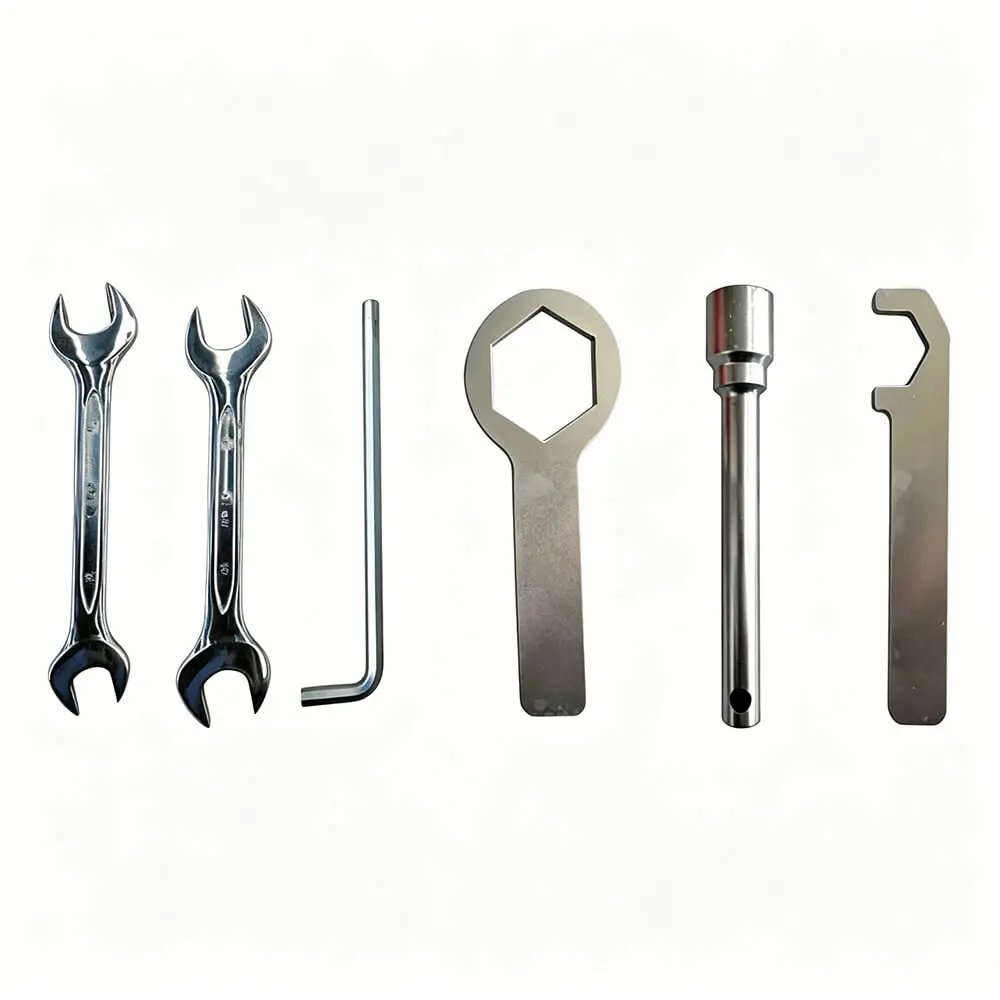

· Fewer fasteners (bolts, nuts): Only 16 frequently assembled/disassembled fasteners (at least 10 fewer than competitors). Fewer fastener specifications mean fewer wrench types are needed.

· Optimized tensioning devices, pressure plate devices, and baffle structures: Fewer parts for quick installation.

· Structural optimization reduces assembly/disassembly workload. For example, the gap between the granule-shaping knife and screen frame is fixed—no adjustment is needed after installation, shortening preparation time. This avoids issues like knife idling (low granulation rate, blockage) from excessive gaps or screen scratching from too-small gaps.

4. Other Practical Designs

· No baffle at the extrusion wheel's tableting outlet; the transparent front cover allows easy production observation.

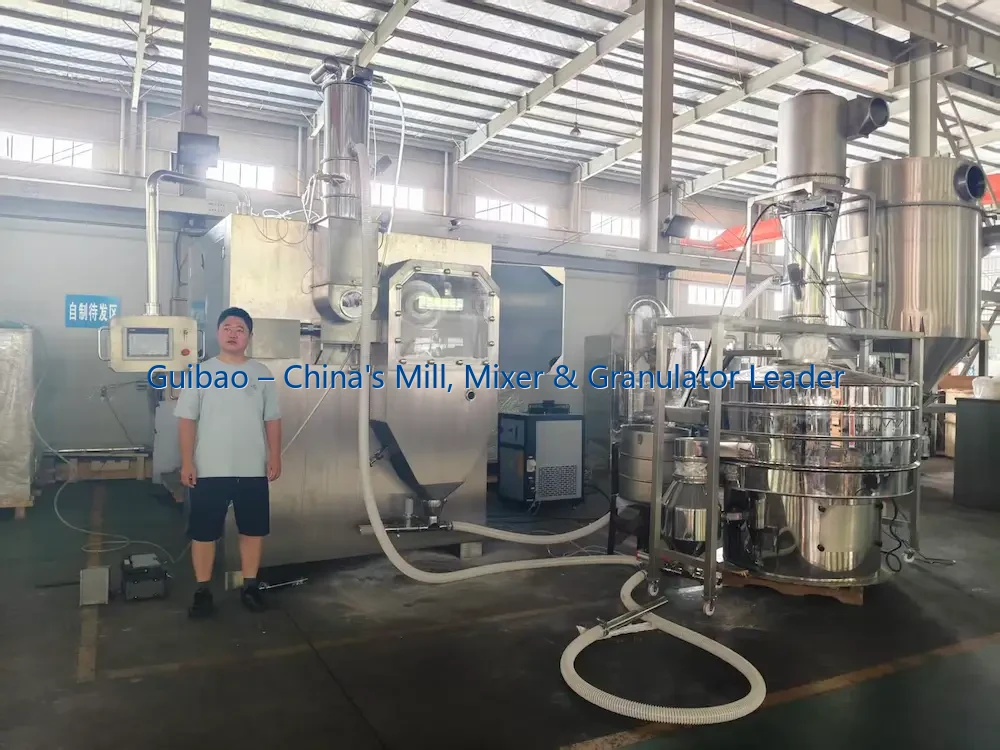

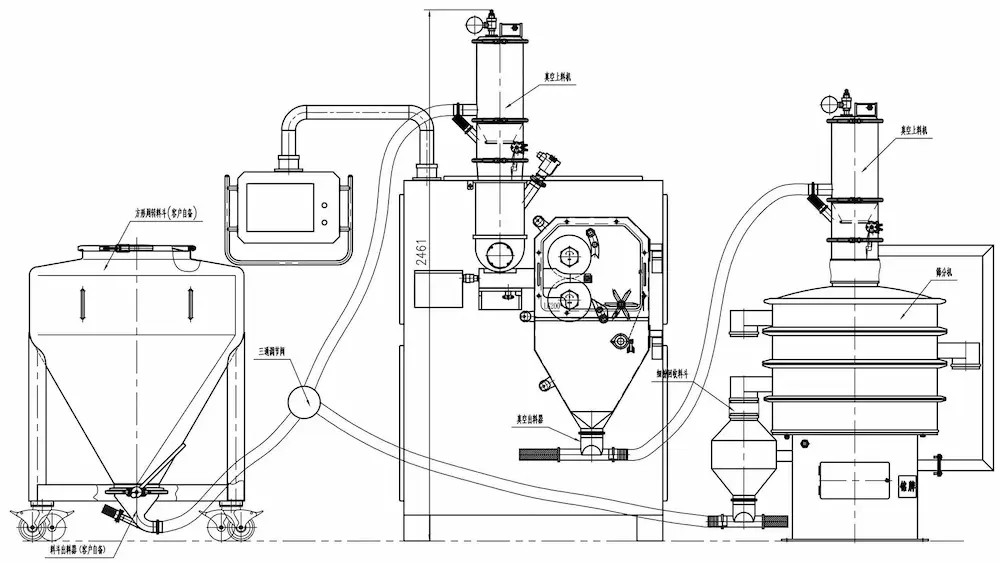

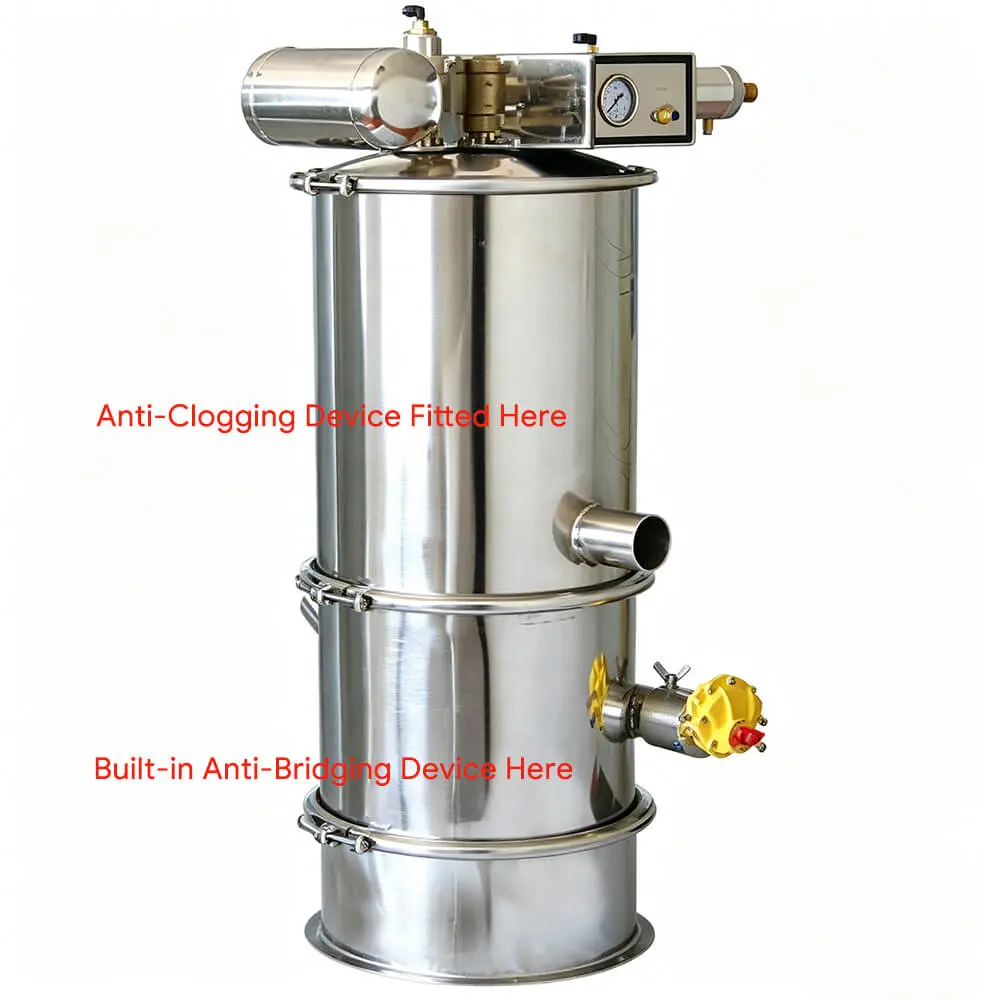

· Our vacuum feeder addresses two common issues (bridging of poor-fluidity materials, respirator blockage after 3-4 hours of use) with anti-bridging and anti-clogging devices, enabling true automated production.

· Integrated electrical control system and host: Small footprint, easy installation and debugging.
