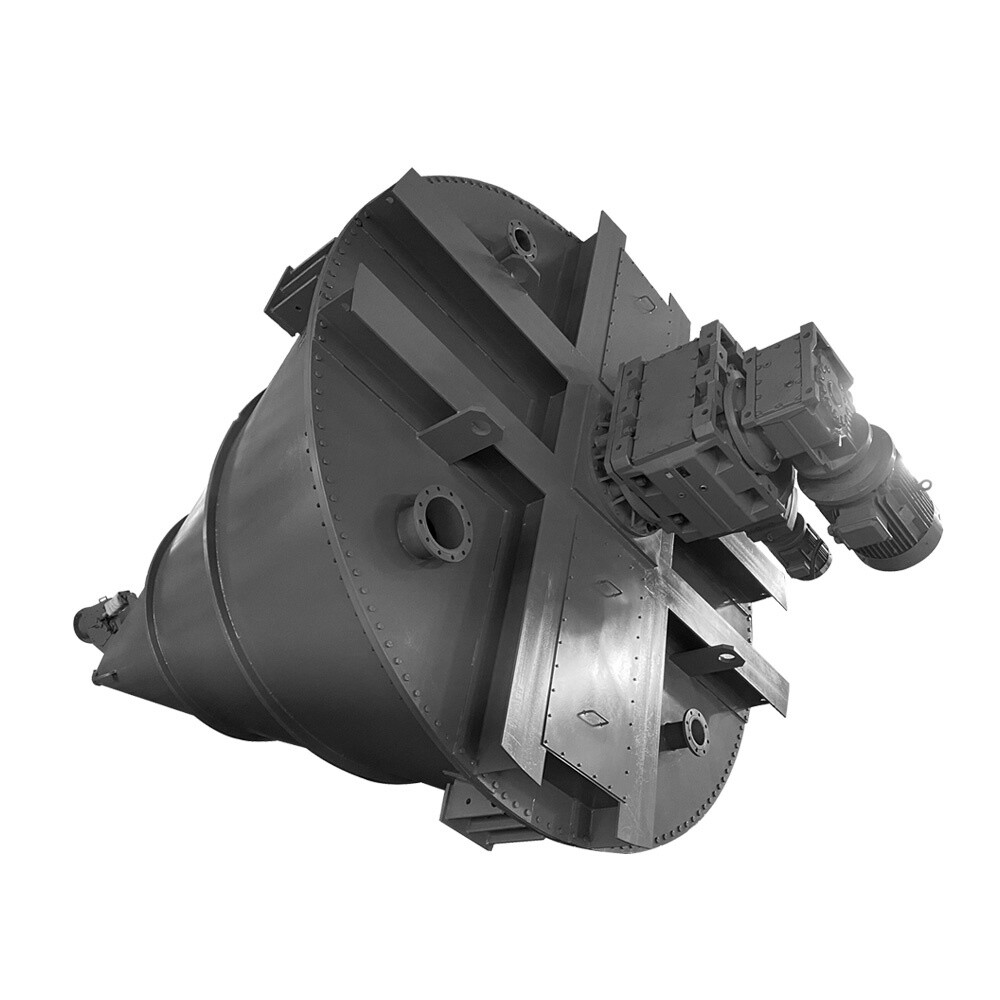

Product Description: Precision Double Helix Conical Mixer

Our Double Helix Conical Mixer is a unique, highly efficient, and precise blending solution. It utilizes a combination of a motor and cycloidal pinwheel reducer to achieve both revolution and rotation, ensuring optimal mixing even for materials with significant proportion differences.¹ This mixer delivers rapid and effective blending, making it ideal for a wide range of industries, including pharmaceuticals, food, chemicals, pesticides, feed, petroleum, metallurgy, mining, construction materials, and coatings.

Working Principle:

The Double Helix Conical Mixer features two asymmetrical spiral augers mounted on a cantilever. These augers rotate around their own axes (rotation) while the cantilever drives them around the central axis of the conical vessel (revolution). This unique design generates four distinct mixing forces:

1. Spiral Rotation: The asymmetrical augers lift materials upward.²
2. Cantilever Revolution: The slow revolution of the cantilever creates a circular flow of materials.
3. Combined Rotation and Revolution: The interaction of rotation and revolution disperses materials radially.
4. Convergence and Downward Flow: Materials lifted to the top converge and flow downward, filling the void at the bottom and creating a comprehensive circulation pattern.³

Product Features:

• Minimal Residual Discharge: Designed to meet high standards for residue-free material discharge.
• Gentle Mixing Action: Preserves the integrity of fragile materials, such as crystals.
• Energy-Efficient Blending: Suitable for materials undergoing chemical reactions.
• Arc-Shaped Upper Cover: Eliminates dead corners for easy cleaning and sanitation.
• Spherical Discharge Valve: Ensures thorough and stable material discharge.
