Product Description: Laboratory Bin Blender - Versatile and Compact Mixing for Small-Scale Trials

Our Laboratory Bin Blender is designed for efficient and versatile mixing in research and development, pilot production, and small-scale manufacturing. This machine automates lifting, clamping, mixing, and lowering actions, making it ideal for pharmaceutical, chemical, and food laboratories.

Purpose:

• Specifically designed for laboratory-scale mixing of powders and granules.
• Accommodates multiple bin sizes (1-100L) for diverse batch requirements.
• Ideal for small-scale trials and multiple product formulations.

Principle of Operation:

The Laboratory Bin Blender consists of a machine base, rotating body, driving system, lifting system, braking system, and control system. To operate:

1. Load the mixing bin into the rotating body.
2. Press "Confirm" on the touchscreen to automatically lift and clamp the bin.
3. The driving system initiates mixing based on set time and speed.
4. The rotating body stops vertically, and the braking system engages upon completion.
5. The lifting system lowers the bin, and process data is printed.
6. Remove the mixed material bin for further processing.

Key Features and Benefits:

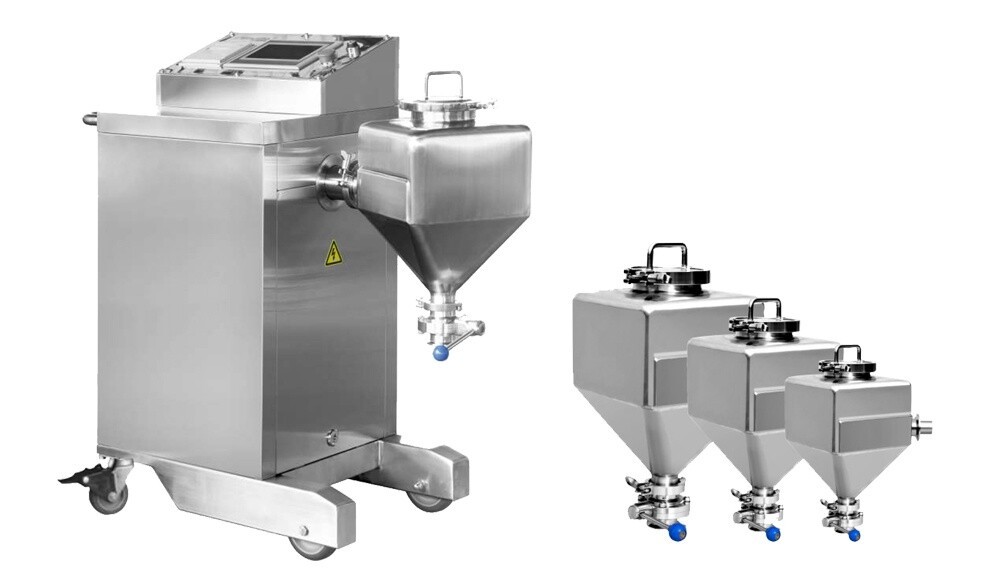

• Interchangeable Bins (1-100L): Accommodates various batch sizes and material types.
• Automated Operation: PLC-controlled system for consistent and hands-free mixing.
• Compact and Mobile Design: Space-saving footprint and easy relocation.
• 30° Rotating Angle: Enhances mixing efficiency through tumbling and tangential movement.
• GMP Compliance: Smooth surfaces, no dead corners, and no exposed screws.
• Safety Features: Infrared safety device and anti-misoperation discharge valve.
• Dust and Cross-Contamination Control: Minimizes material loss and stratification.
• Optimized Production Process: Streamlines material handling and improves efficiency.
• Versatile Applications: Suitable for pharmaceutical, chemical, and food laboratories.
