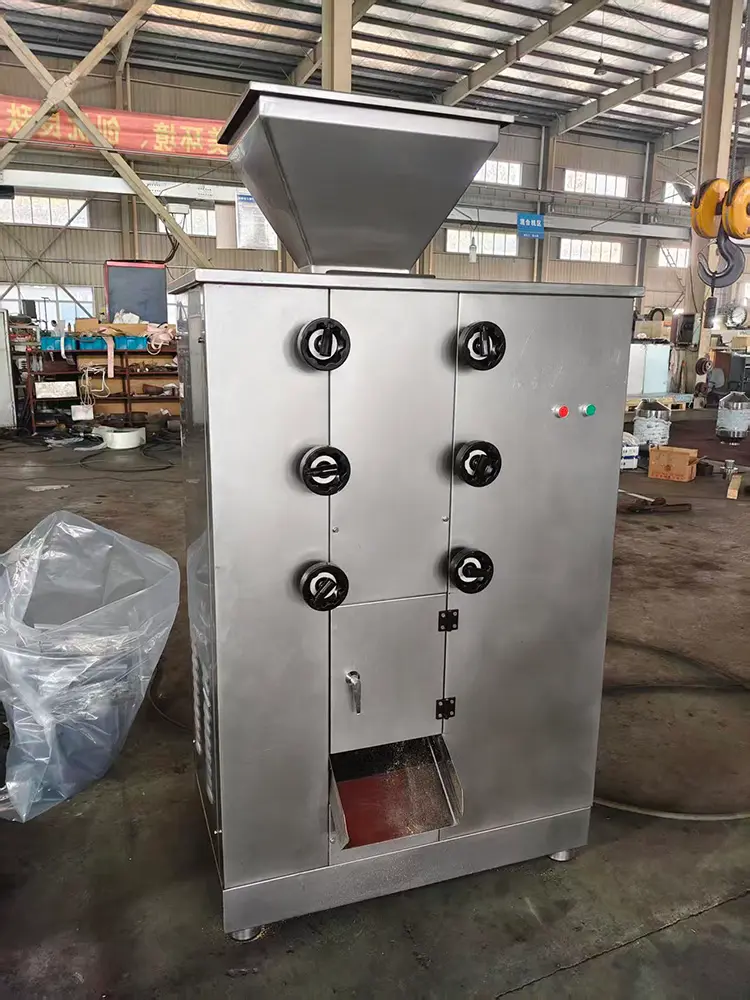

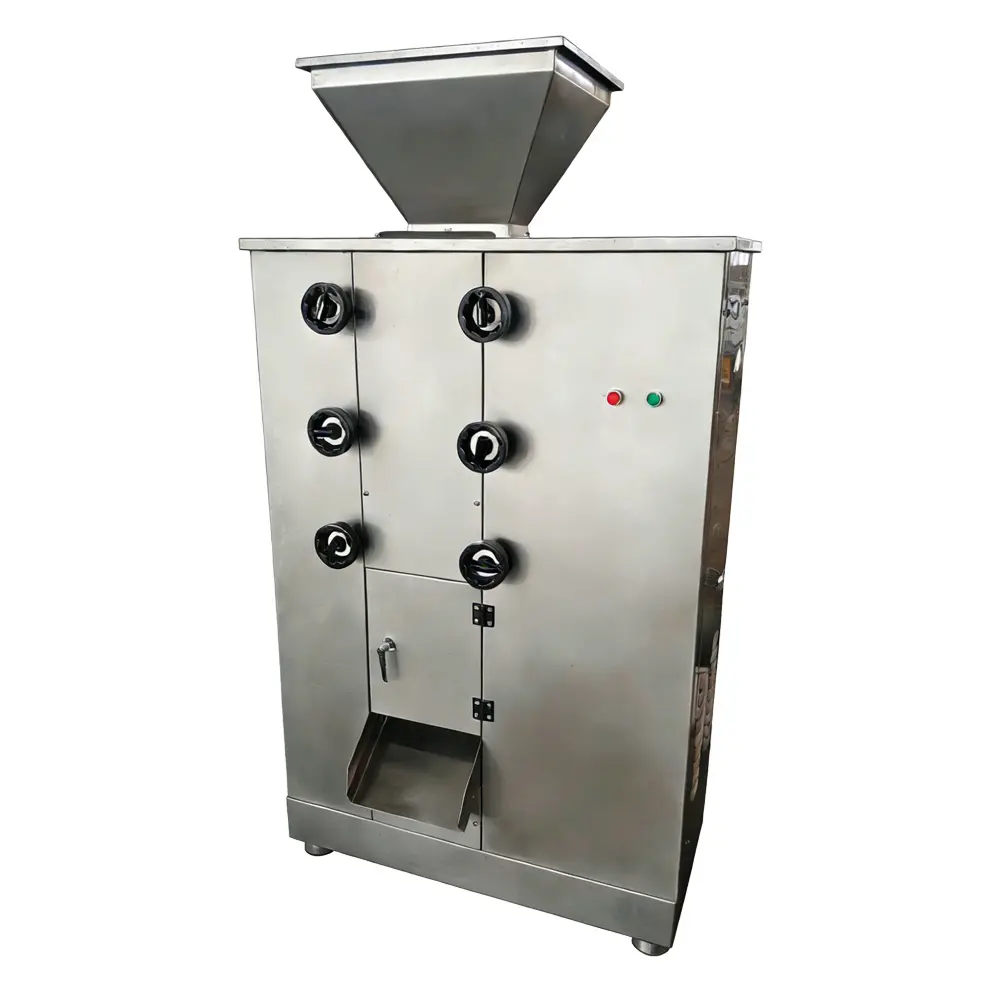

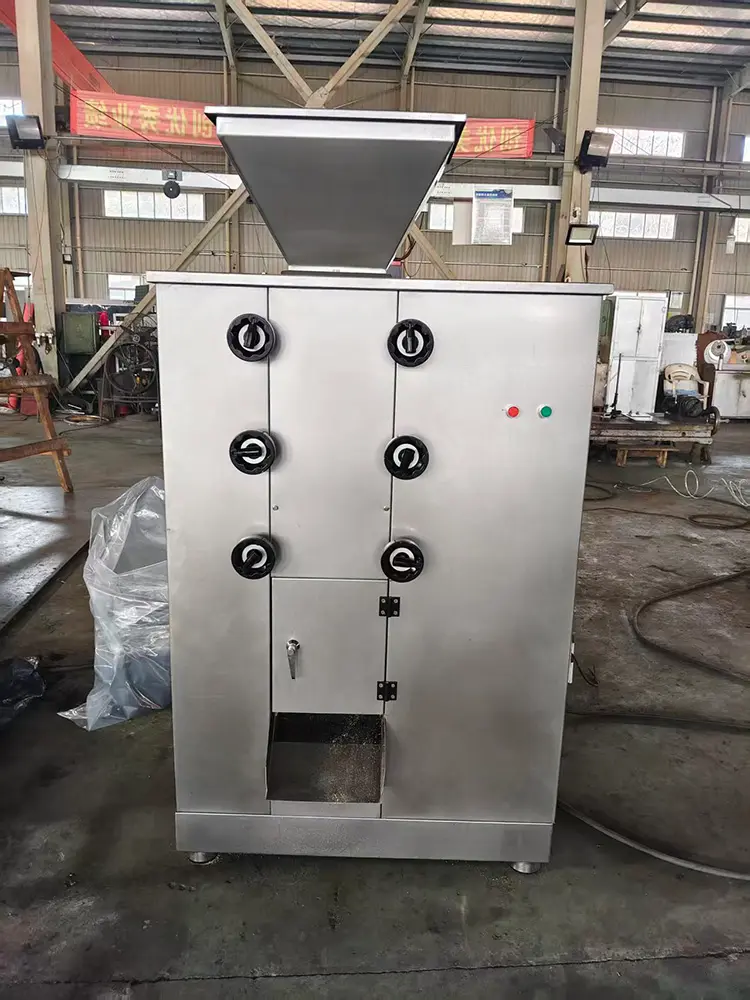

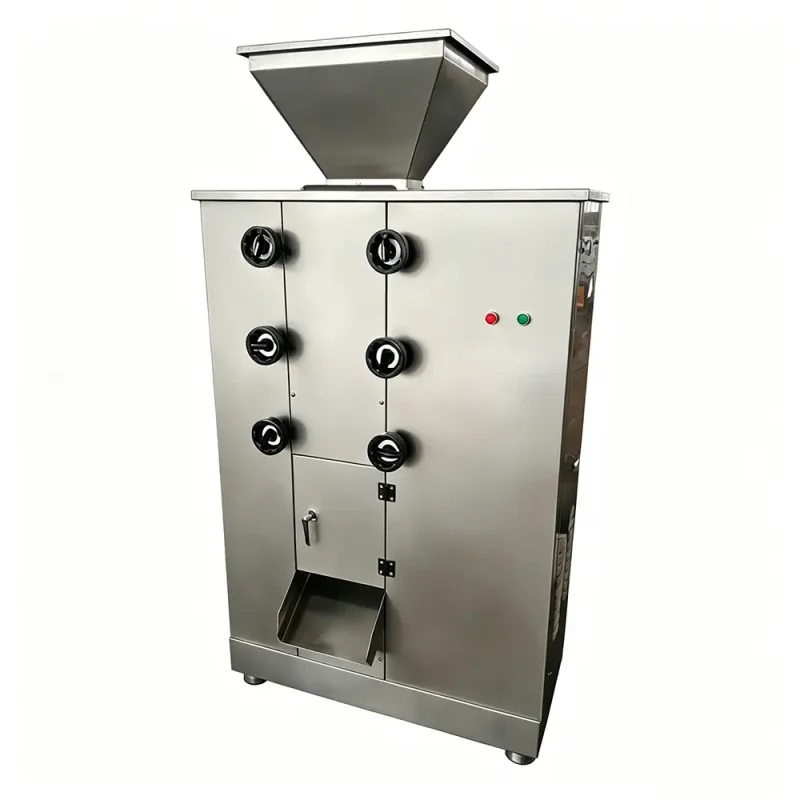

RM Series Roll Mill

Established in 1984 – Top-tier Chinese Manufacturer of Grinders, Mixers & Dry Granulators.

Introduction
Request a Quick Quote

Product Introduction

Application

This machine is especially suitable for grinding oily materials, such as sesame, peanut, walnut, almond, flaxseed, rapeseed, badam, cocoa bean, coffee bean, etc. The grinding fineness can reach 10–60 mesh.



Working Principle

Materials enter the roller chamber through the feeding hopper and are ground by repeated extrusion and rolling between the rollers. Different fineness can be precisely controlled by adjusting the gap between the two rollers.


 Features

Easy operation, low noise and high output. It is an ideal special equipment for grinding oily materials.

Technical Parameters

ModelCapacity (kg/h)Fineness (mesh)Motor Power (kW)Overall Dimensions (L×W×H, mm)Weight (kg)
RM-100(1 ~ 4)20–8010 ~ 600.75 ~ 3500×500×890 ~ 1610250 ~ 400
RM-150(1 ~ 4)50–15010 ~ 602.2 ~ 5.5720×520×920 ~ 1640500 ~ 650
RM-300(1 ~ 4)100–50010 ~ 603 ~ 7.5920×700×1160 ~ 2060760 ~ 1300
RM-500(1 ~ 4)200–100010 ~ 605.5 ~ 111100×730×1220 ~ 2120950 ~ 1850
