Cone Mill | Precision Size Reduction Cone Mill for Pharmaceutical & Chemical Manufacturing

Industrial Conical Screen Cone Mill (Co-Mill) | Engineered for High-Stakes Pharmaceutical Production & Heavy-Duty Chemical Processing Facilities

Product Overview

Our heavy-duty industrial cone mill is a premium precision size reduction and granulation machine, built exclusively to deliver consistent, controllable particle sizing for the strictest pharmaceutical and chemical production environments. Unlike traditional hammer mills and high-impact grinding equipment, this conical cone mill uses a gentle, low-impact milling principle, making it the ideal choice for heat-sensitive, hygroscopic, fragile, and explosive raw materials and intermediate products widely used in pharma and chemical plants worldwide.

Designed to meet global strict industry standards, this versatile cone mill integrates seamlessly into both batch and continuous production lines. It performs core industrial functions including dry milling, wet granulation sizing, de-agglomeration, delumping, tablet recycling, and powder homogenization.

Working Principle

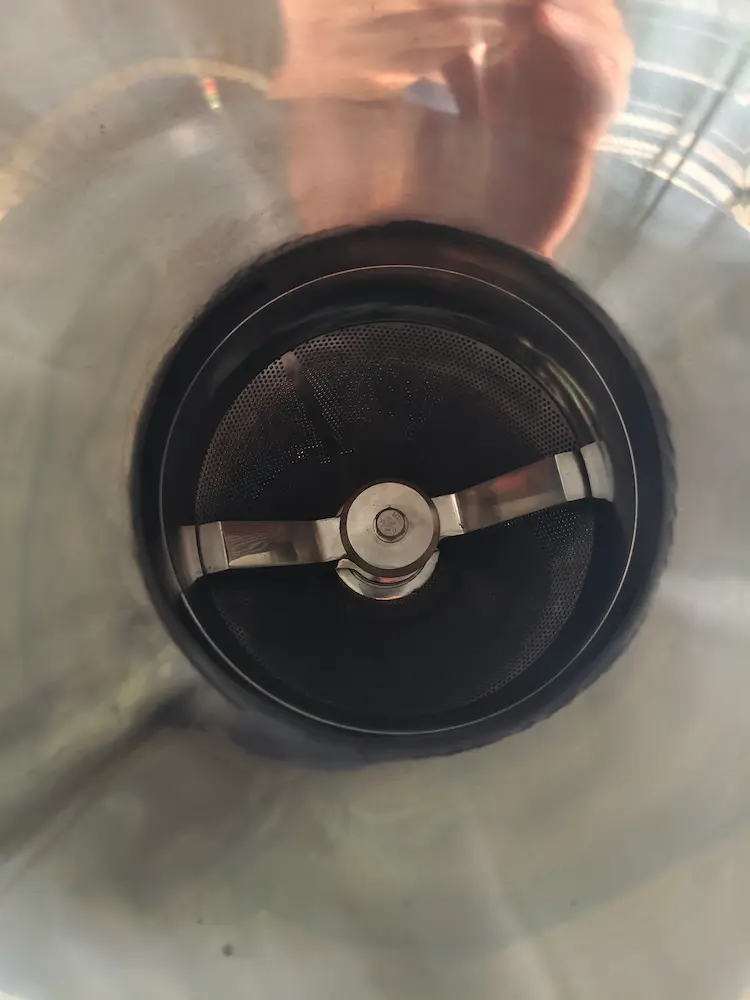

This cone mill operates with a precision-engineered rotating impeller inside a fixed conical screen, applying controlled shear force and centrifugal force to process materials without harsh impact or friction. Raw materials are fed through the top feeding hopper, guided smoothly into the conical milling chamber, and pushed through a custom-sized screen mesh to achieve your exact target particle size. The unique conical structure guarantees uniform material flow, prevents screen clogging, and minimizes heat buildup, dust emissions, and operational noise even at full working speed. There is no direct metal-to-metal contact between core processing parts, which drastically lowers cross-contamination risks and reduces equipment wear, preserving raw material purity and extending the service life of your cone mill.

Core Cone Mill Features & Industry-Specific Advantages

Our cone mill is tailored to solve the unique pain points of pharmaceutical and chemical production, combining compliance, performance, and durability into one reliable industrial solution. Below are the key advantages that set our cone mill apart from standard grinding equipment:

Compliance-Focused Design (Pharmaceutical Grade Priority)

• Sanitary Construction: All product contact parts crafted from 316L stainless steel, non-contact parts from 304 stainless steel, fully polished to Ra ≤ 0.8μm for easy cleaning and disinfection

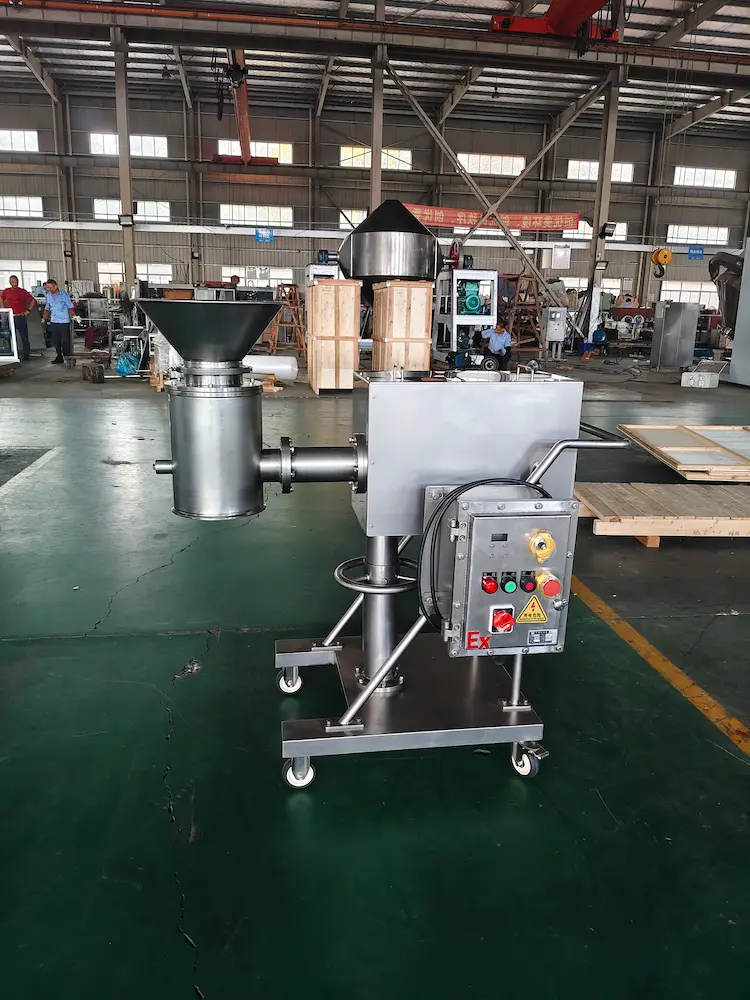

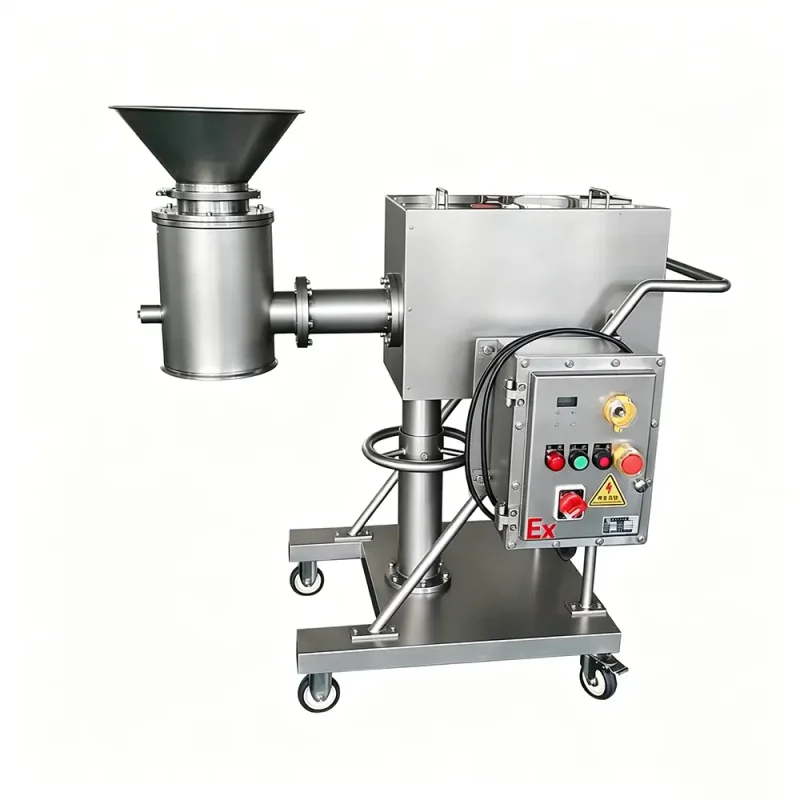

• Regulatory Compliance: Meets cGMP, FDA, EU GMP, and CE standards; optional ATEX-certified models available for explosive chemical powder environments

• Seal & Gasket Quality: Food-grade and pharmaceutical-grade silicone, PTFE, or Viton seals, fully compliant with global safety regulations, no chemical leaching or contamination risks

Superior Milling Performance

• Precise Particle Control: Interchangeable conical screens with customizable mesh sizes, adjustable impeller speed for tailored particle distribution

• Low Heat & Low Dust: Gentle milling action generates minimal heat, protecting heat-sensitive APIs, pharmaceutical excipients, and temperature-vulnerable chemical compounds; closed design contains dust, improving workplace safety and reducing material loss

• Wet & Dry Dual Compatibility: Efficiently processes both dry powders/granules and wet granulation mixtures, eliminating the need for separate machines and cutting equipment investment costs

• High Throughput & Low Energy: Optimized mechanical structure delivers consistent output with low power consumption, reducing long-term operational costs

Easy Operation & Maintenance

• Tool-Free Disassembly: Quick-release design allows fast disassembly, cleaning, and screen replacement, minimizing production downtime between batches

• Low Maintenance: No complex components, minimal wear parts, reduced frequency of repairs and part replacements

• User-Friendly Control: Intuitive control panel with adjustable speed settings, overload protection, and stable operation for both skilled operators and routine production staff

Durable & Long-Lasting

• Robust stainless steel frame resists corrosion, ideal for harsh chemical processing environments with acidic or alkaline materials

• Stable operation with low noise levels, complying with industrial workplace noise standards

Key Applications for Pharmaceutical & Chemical Industries

Pharmaceutical Industry Applications

• Size reduction and homogenization of active pharmaceutical ingredients (APIs) and excipients

• Wet granule sizing before drying to shorten drying time and improve uniformity

• Dry granule conditioning before tableting and capsule filling for consistent dosage

• De-agglomeration of raw materials and intermediate products

• Recycling of broken tablets, capsules, and expired drugs into reusable powder

• Powder dispersion and sieving to remove lumps and foreign particles

Chemical Industry Applications

• Delumping of industrial chemical powders, dyes, pigments, and detergent granules

• Size reduction of plastic additives, rubber chemicals, and specialty industrial compounds

• Processing of hygroscopic and heat-sensitive chemical raw materials

• Product reclamation and reprocessing of chemical tablets and waste materials

• Homogenization of mixed chemical powders for consistent batch quality

Why Choose Our Cone Mill?

Packaging, Shipping & After-Sales Service

• Export-grade wooden packaging for safe global shipping

• Professional installation and commissioning services

• Comprehensive operator training documentation and on-site guidance

• 12-month warranty and lifelong technical support

• Quick spare parts supply worldwide

Get a Custom Quote

Ready to find the perfect cone mill for your pharmaceutical or chemical production line? Contact our expert sales team with your key details – including daily production capacity, raw material type, target particle size, and required compliance certifications – and we will deliver a fully customized cone mill solution and competitive quote. We also offer professional sample testing services, so you can verify the milling performance and particle size results of our cone mill before placing an order.
