Product Introduction

GFSJ Series High-Efficiency Pulverizer – Product Brief

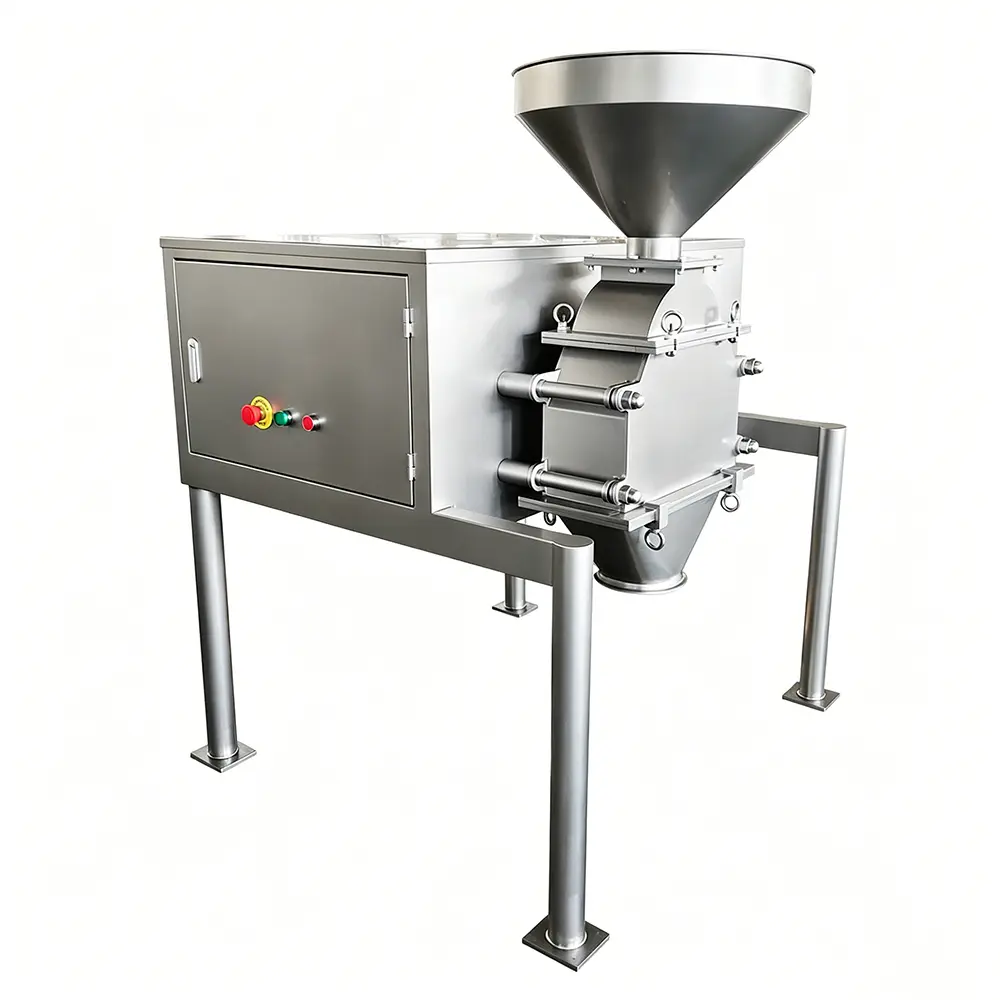

Name: GFSJ Series Hammer Mill
SKU: 0

The GFSJ series high-efficiency pulverizer is versatile grinding equipment based on high-speed shearing technology. It is designed for coarse and medium grinding processes, and can also serve as pre-processing equipment for ultra-fine grinding, with wide applications in pharmaceutical, food, chemical and other industries.

Working Principle

This high-speed machine pulverizes materials through the combined shearing and impact force of rotating blades. Materials fed into the grinding chamber are crushed by the high-speed cutter head, and particles meeting the size requirement pass through the bottom screen for discharge.

Blades of various shapes and sizes can be selected for different materials. The finished particle size (typically 12–120 mesh) is adjustable by replacing the screen mesh or modifying the spindle speed.

Core Advantages

High efficiency, low energy consumption
Excellent grinding performance for granular and brittle materials with low energy input. Capacity ranges from 10 to 500 kg/h across models, fitting both small-batch and large-scale production.
Hygienic and compliance-ready
All material-contact parts in the grinding chamber are made of stainless steel with good acid and corrosion resistance. The dead-zone-free structure is easy to disassemble and clean, meeting GMP standards for pharmaceutical and food production.
Broad material compatibility
Interchangeable blade designs adapt to granular raw materials, fibrous substances and materials with moderate oil content, delivering high versatility.
Stable operation, easy maintenance
Compact structure with low noise and reliable performance. Simple to install and maintain; can operate standalone or integrate into production lines.

Applications

Pharmaceutical: grinding of herbal medicines, APIs, excipients and granular formulations
Food: powder processing of spices, dried fruits, grains and food additives
Chemical: crushing of chemical raw materials, granular additives and dyes

Technical Parameters

Table 1: Standard GFSJ Series

Item	GFSJ-8	GFSJ-16	GFSJ-32	GFSJ-48	GFSJ-64
Capacity (kg/h)	10–100	50–300	100–500	150–800	200–1200
Discharge Fineness (mesh)	12–120	12–120	12–120	12–120	12–120
Power (kW)	3	7.5	11	15	18.5
Speed Range (rpm)	500–4000	500–4000	500–4000	500–4000	500–4000
Overall Dimensions (mm)	1050×600×1600	1100×600×1600	1280×950×1600	1280×1200×1700	1380×1200×1750
Weight (kg)	180	300	450	550	690

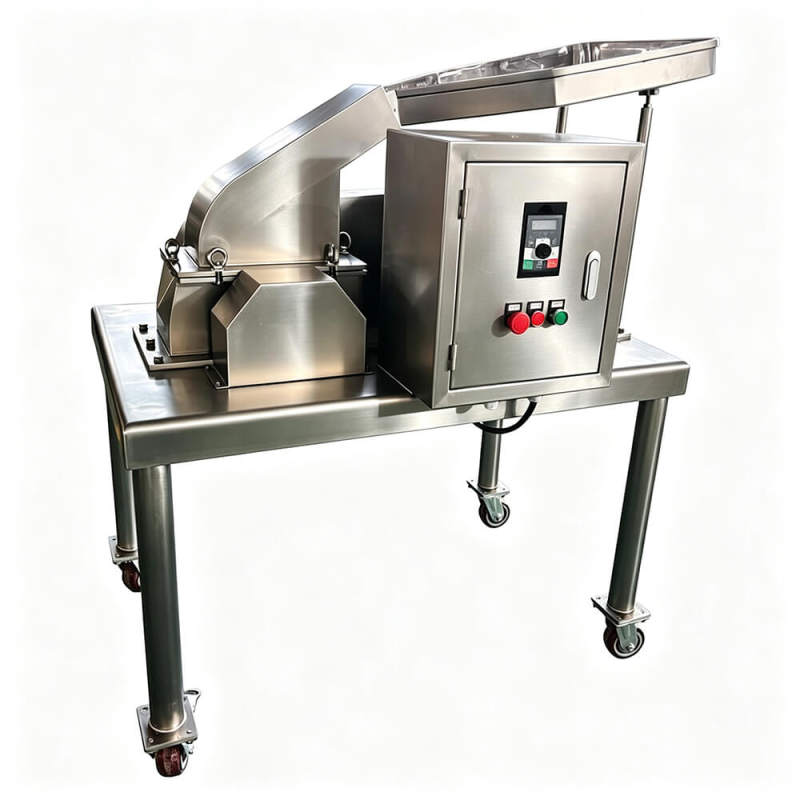

Table 2: GFSJ-B Series (Stepless Speed Control)

Item	GFSJ-8B	GFSJ-16B	GFSJ-32B
Capacity (kg/h)	10–100	50–300	100–500
Discharge Fineness (mesh)	12–120	12–120	12–120
Power (kW)	3	7.5	11
Speed Range (rpm)	0–4000	0–4000	0–4000
Overall Dimensions (mm)	950×980×1450	1250×1000×1610	1250×1150×1630
Weight (kg)	210	260	450
