W Series Double Cone Ribbon Blender

Established in 1984 – Top-tier Chinese Manufacturer of Grinders, Mixers & Dry Granulators.

Double Cone Ribbon Blender combines the advantages of Double Cone Mixer and Ribbon Mixer, perfectly solving the problems of traditional ribbon mixers such as discharge residue, shaft end seal leakage, low loading coefficient and difficult cleaning.

Request a Quick Quote

Product Introduction

Double Cone Ribbon Mixer – Dual-Motion Precision Blending for Powders & Granules

Name: W Series Double Cone Ribbon Blender
SKU: 0

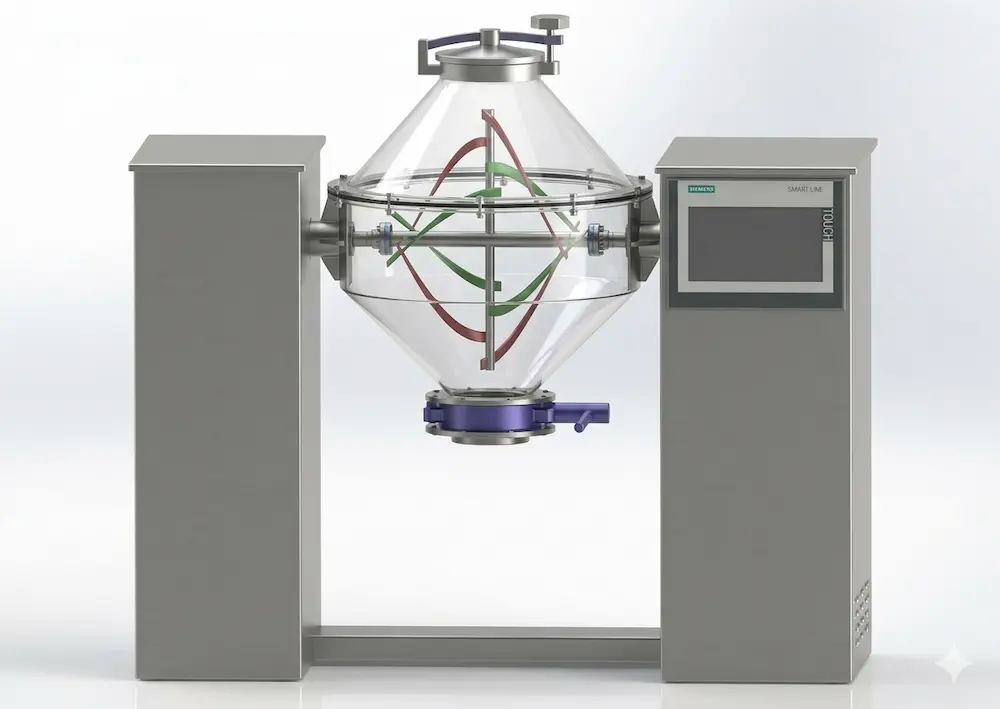

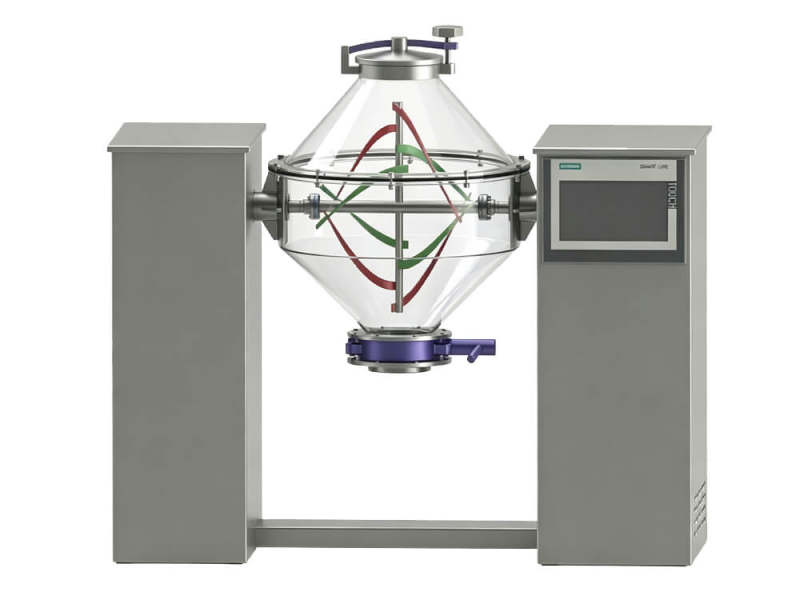

High-Performance Mixing Combining 360° Container Rotation and Internal Spiral Ribbon Agitation

Ideal for pharmaceutical, food, chemical, and laboratory R&D applications.

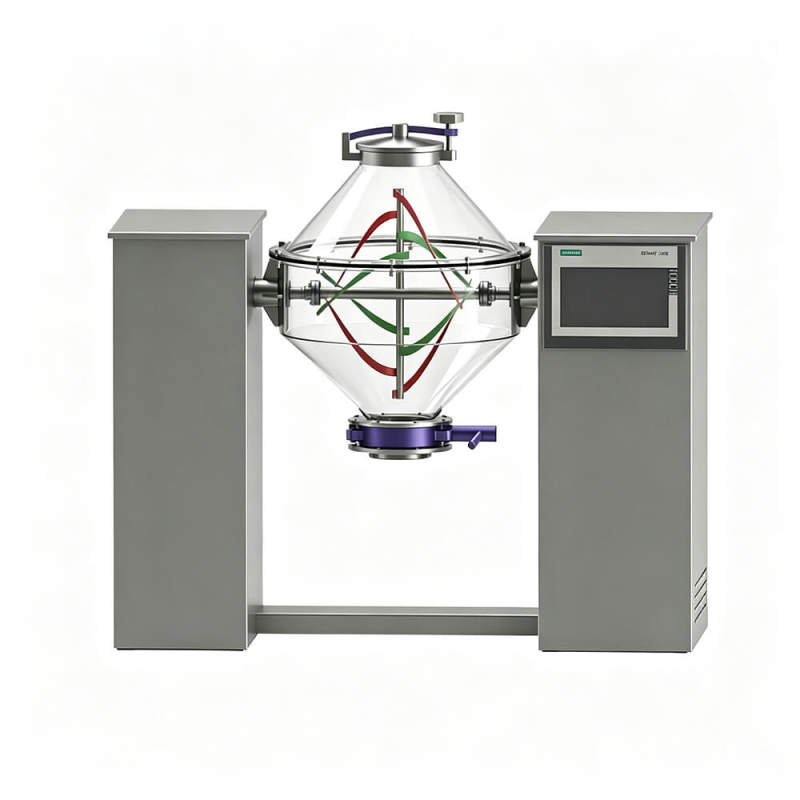

Combining the benefits of double cone and horizontal ribbon mixers, this stainless steel industrial mixer uses 360° drum rotation plus internal ribbon agitation for superior mixing.

It solves uneven mixing issues for materials with different bulk densities or trace additives, achieving high uniformity.

Core Advantages & Technological Highlights

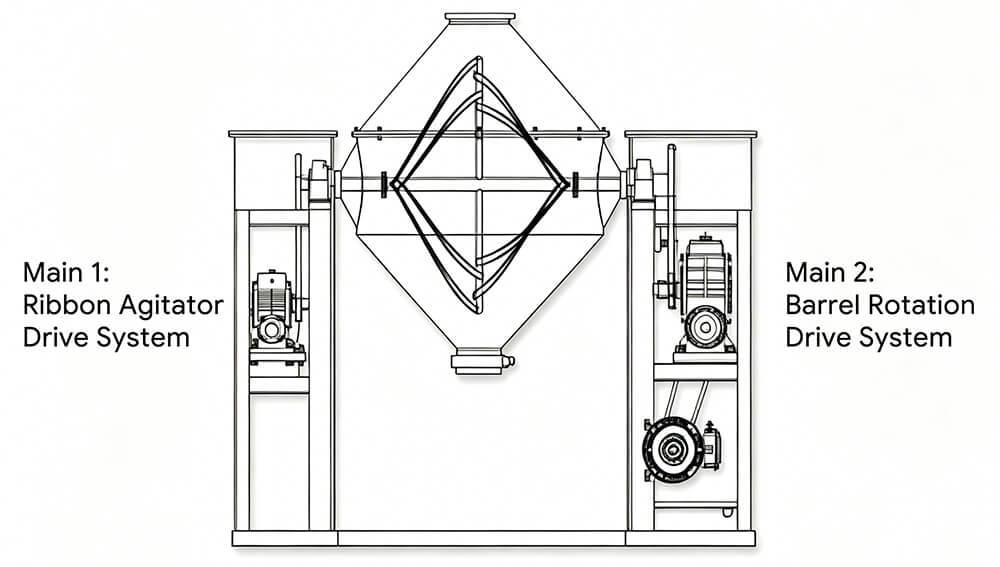

Dual-Power Independent Drive System
This double cone ribbon mixer features two independent drives: Power 1 rotates the stainless steel barrel 360°, while Power 2 drives the spiral ribbon blades forward and backward, ensuring full, uniform mixing.

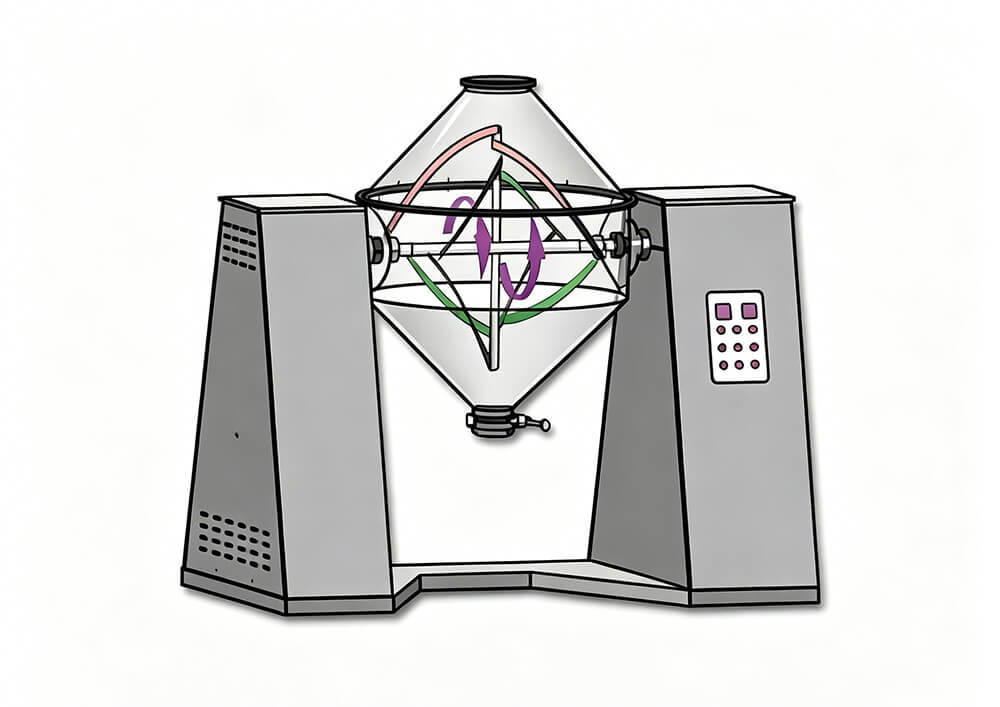

Automatic Forward & Reverse Circulation Stirring

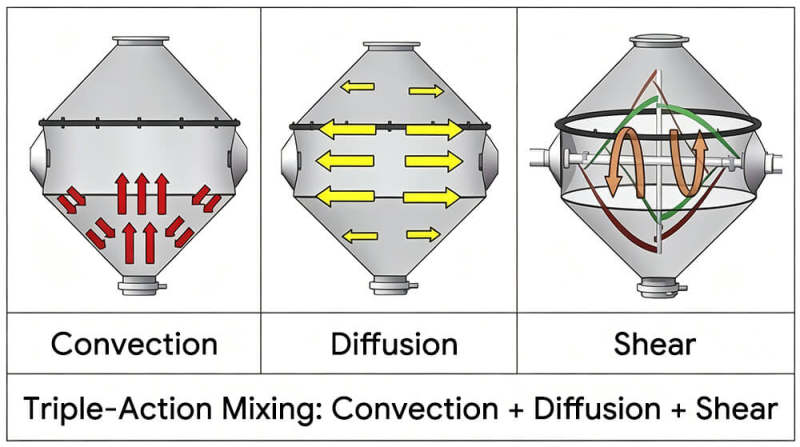

Ribbon blades auto cycle forward & reverse, boosting convection and shearing of powders and granules, greatly improving mixing efficiency and uniformity for high-precision pharmaceutical & industrial blending.

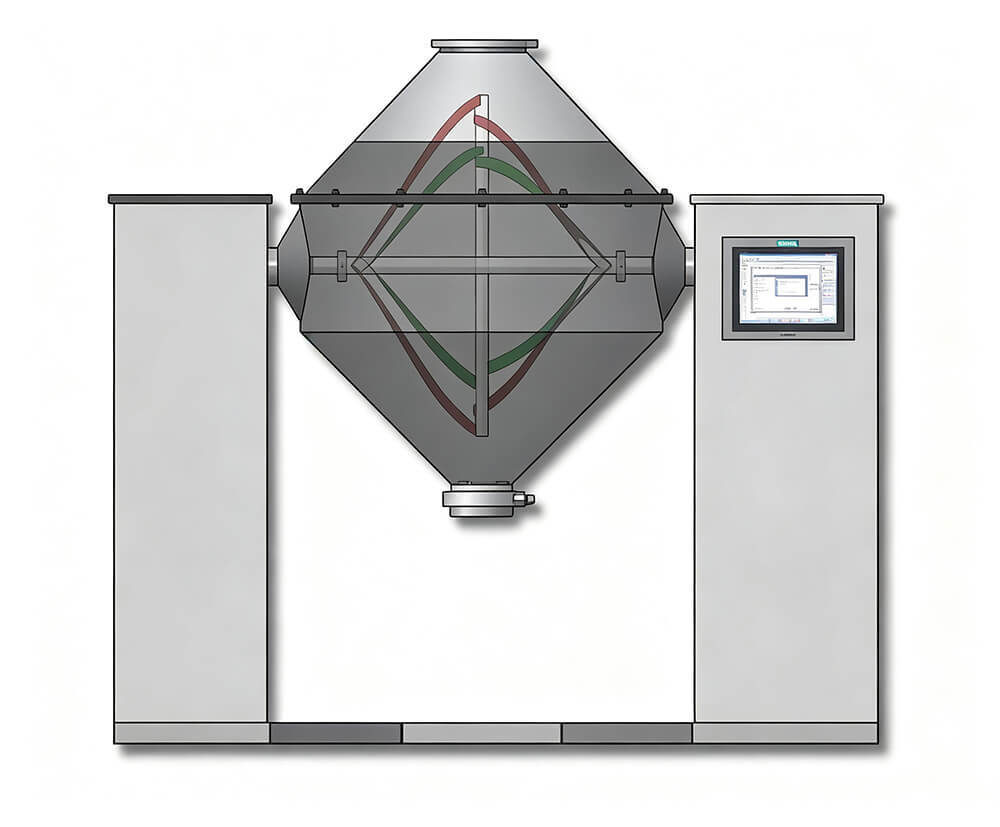

80% High Loading Capacity

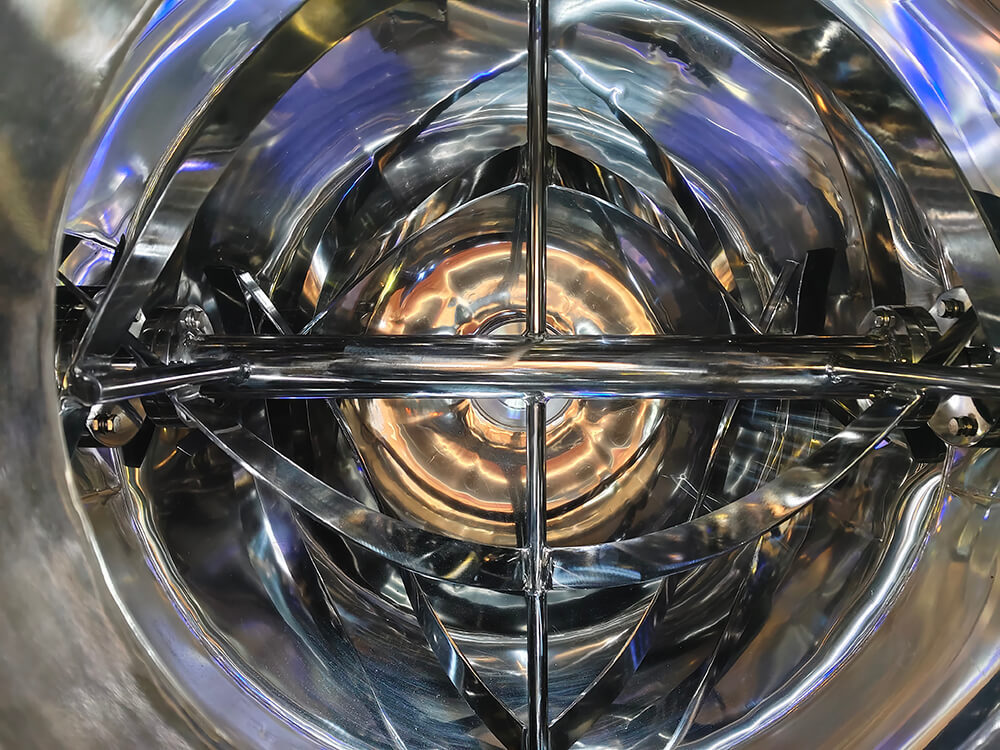

Full-size double ribbon blades enable fast, uniform mixing at 80% loading, greatly improving efficiency and reducing costs.
Easy Cleaning
Large fully open barrel for thorough, convenient cleaning, eliminating residue and cross-contamination.

Applications by Industry & Typical Materials

Pharmaceutical Industry: API powder, excipients, herbal extracts, pharmaceutical premixes
Food Industry: Seasonings, spices, flour, grain powder, milk powder, food additives
Chemical Industry: Fine chemicals, pigments, dyes, additives, chemical raw materials
Cosmetics & Daily Chemical: Cosmetic powder, talcum powder, personal care raw materials

Technical Parameters

Model	Total Volume (L)	Effective Volume (L)	Capacity (kg/batch)	Rotational Speed Of The Barrel (rpm)	Rotational Speed Of The Ribbon (rpm)	Motor Power Of The Barrel (kW)	Motor Power Of The Ribbon (kW)	Overall Dimension (mm)
W-180	180	144	72	12	42	1.1	2.2	1400×800×1850
W-300	300	240	120	12	42	1.1	3	1685×800×1850
W-500	500	400	200	12	28	2.2	5.5	1910×800×1940
W-1000	1000	800	400	10	22	4	7.5	2765×1500×2370
W-1500	1500	1200	600	10	16	4	15	2960×1500×2480
W-2000	2000	1600	800	10	12	7.5	18.5	3160×1900×3500
W-2500	2500	2000	1000	7.8	12	7.5	22	3386×1900×3560
W-3000	3000	2400	1200	7.8	12	7.5	22	4450×2200×3600
W-4000	4000	3200	1600	7.8	11	11	30	4750×2500×3680
W-6000	6000	4800	2400	7.8	11	22	30	5000×2600×4000
W-8000	8000	6400	3200	7.8	10	30	37	5500×2700×4200
